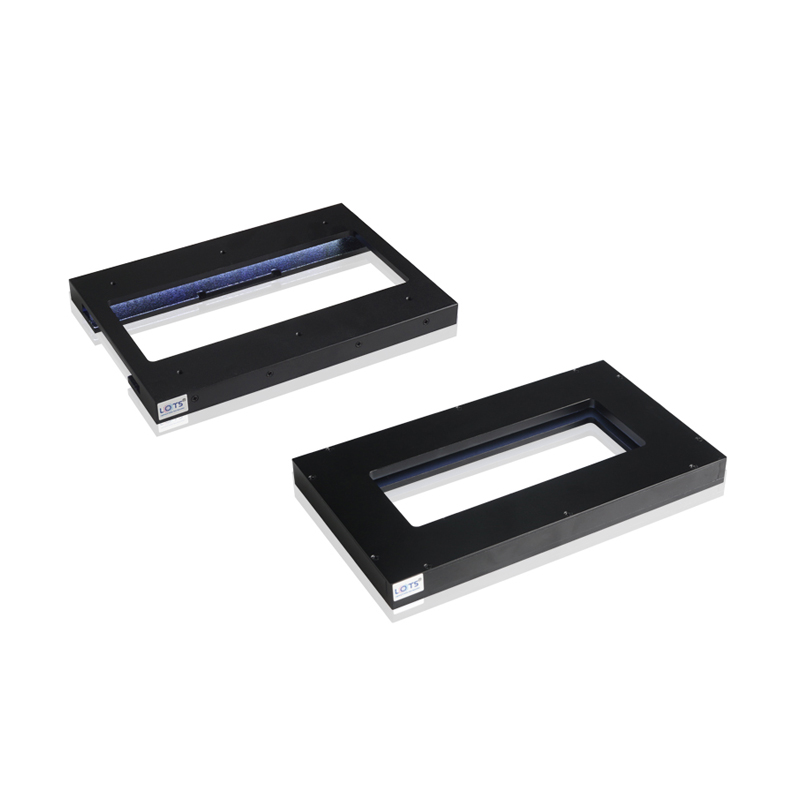

Machine Vision Light
LXV-BRV
Pin Inspection Light
Pin inspection light use surface-mount LED, the light ray is thin, similar as laser light. Compact volumn, easy to install. Applicate in slender object inspection, such as Pin inspection.
Features
- •Strong directivity, highlight the pin to have clearer contrast to background.
- •2.Matched with brighten Strobe Controller, used in high speed application.
- •3.Used in the small items, such as pin inspection.
Applications
- •Pin location or measure
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-BRV12075-W2 | Red / Blue / Green / White | L120xW75xH13.5(mm) | 24V | 2.9W/5.8W |
| LXV-BRV120110-W4 | Red / Blue / Green / White | L120xW110xH16(mm) | 24V | 11.6W/11.6 |
| LXV-BRV150120-W2 | Red / Blue / Green / White | L150xW120xH26(mm) | 24V | 8.7W/11.6W |
| LXV-BRV170120-W2 | Red / Blue / Green / White | L170xW120xH13.5(mm) | 24V | 8.7W/11.6W |
| LXV-BRV190110-W4 | Red / Blue / Green / White | L190xW110xH16(mm) | 24V | 14.4W/17.3W |
| * UV & IR light can be customized as required. | - | - | - | - |

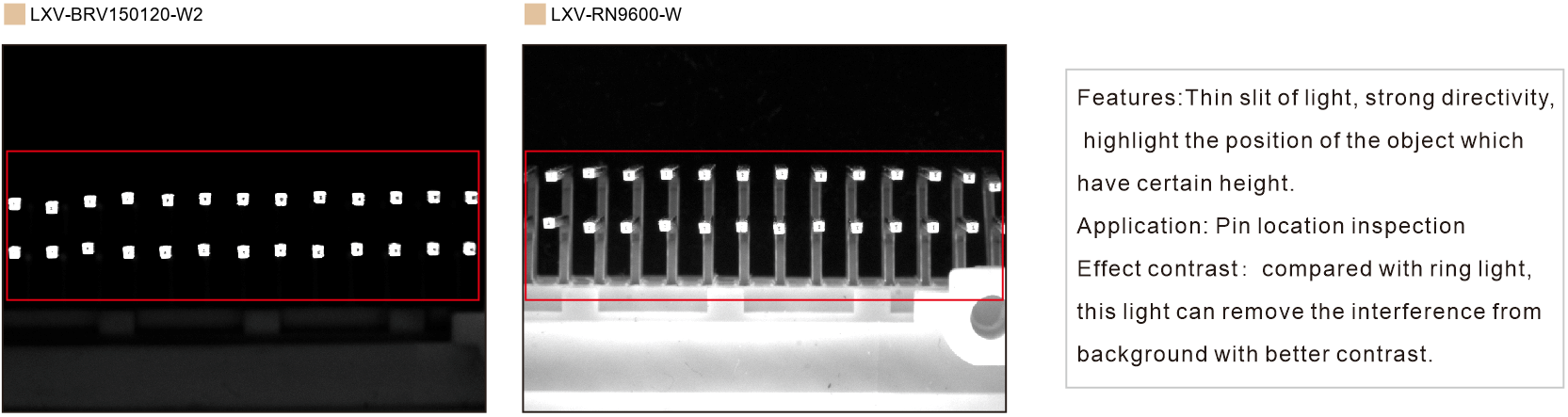

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-BRV.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
