Machine Vision Light
LXV-DL

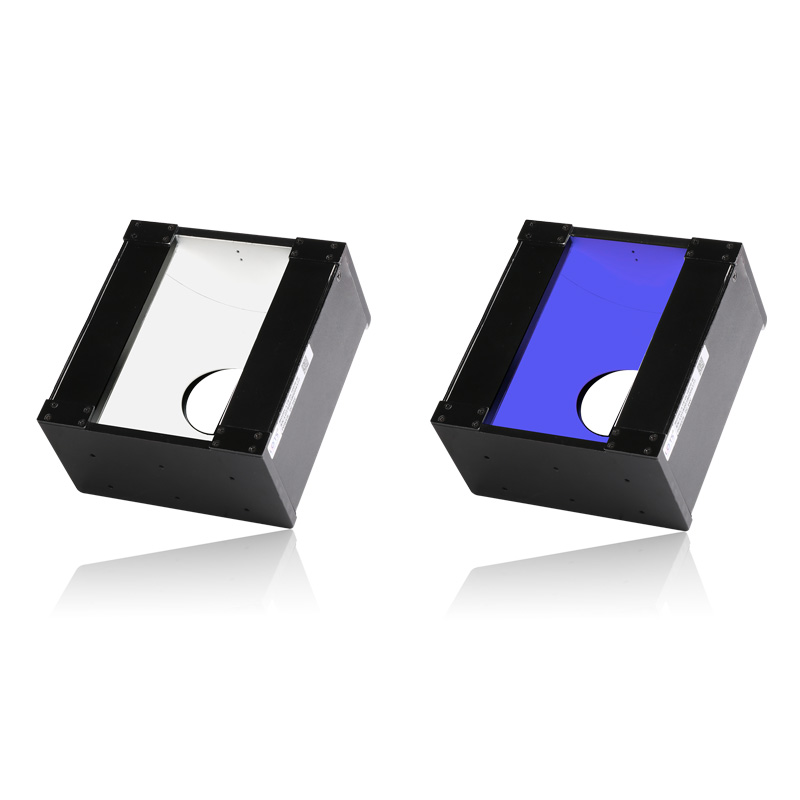

Arch Shadowless Light
The shadowless vault light, which high-intensity and high-uniform LEDs mounted on it, is pretty suitable for the inspection of reflective objects. The middle hole can be customized according to customers’ needs in order to be compatible with the plane array camera.
Features
- •High uniformity, high luminance.
- •2.Used to the workpiece which need balanced surface.
- •3.Reduce the reflect light or flare.
Applications
- •PCB inspection.
- •2.Packing inspection.
- •3.Plastic surface inspection.
- •4.Metal surface scratch inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-DL9070-R/BGW | Red / Blue / Green / White | L102xW128xH69(mm) | 24V | 9.6W/11.6W |
| LXV-DL12570-R/BGW | Red / Blue / Green / White | L139xW112xH62(mm) | 24V | 15.4W/17.3W |
| LXV-DL14395-R/BGW | Red / Blue / Green / White | L155xW155xH71(mm) | 24V | 15.4W/17.3W |
| LXV-DL16050-R/BGW | Red / Blue / Green / White | L170xW95xH67.5(mm) | 24V | 15.4W/17.3W |
| LXV-DL190142-R/BGW | Red / Blue / Green / White | L200xW190xH130(mm) | 24V | 17.3W/23.1W |
| LXV-DL26070-R/BGW | Red / Blue / Green / White | L272xW128xH69(mm) | 24V | 26.9W/34.6W |
| LXV-DL204110-R/BGW | Red / Blue / Green / White | L220xW170xH90(mm) | 24V | 17.3W/23.1W |
| LXV-DL277142-R/BGW | Red / Blue / Green / White | L287xW190xH130(mm) | 24V | 28.8W/34.6W |
| LXV-DL340130-R/BGW | Red / Blue / Green / White | L350xW175xH120mm) | 24V | 34.6W/46.1W |
| * UV & IR light can be customized as required. | - | - | - | - |

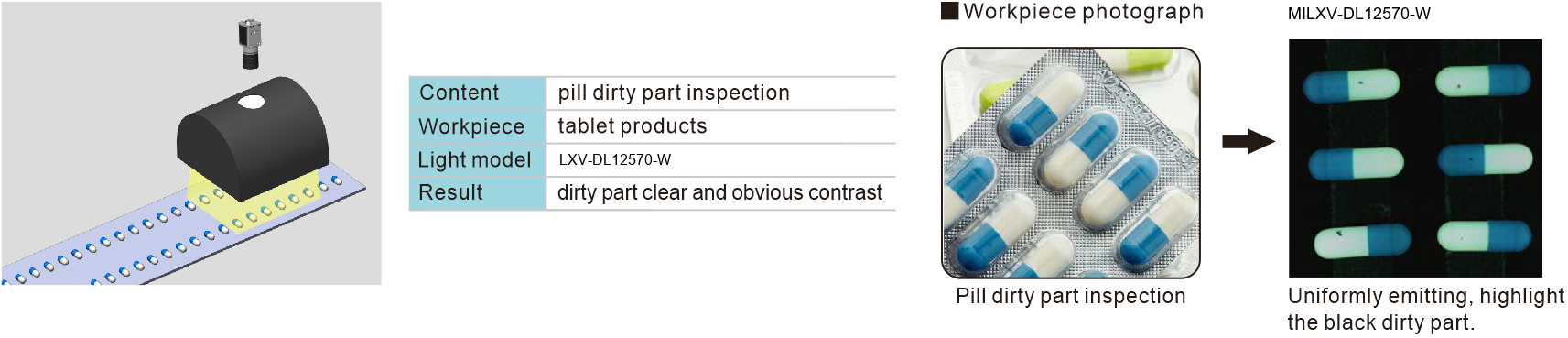

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-DL.
OPTICAL DESIGN & NAMING

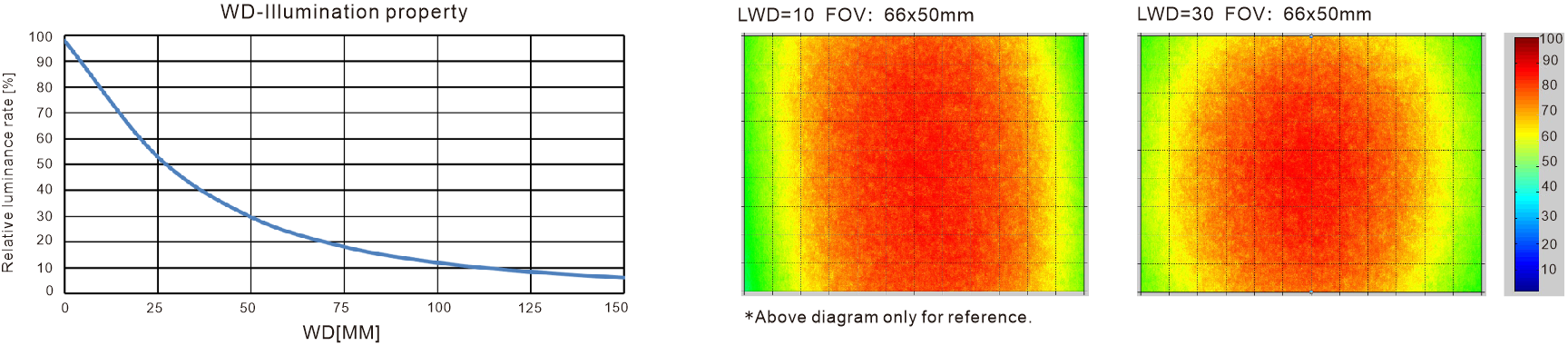

Optical Diagram & Model Naming Convention
Model Naming Convention
Vector Diagram
