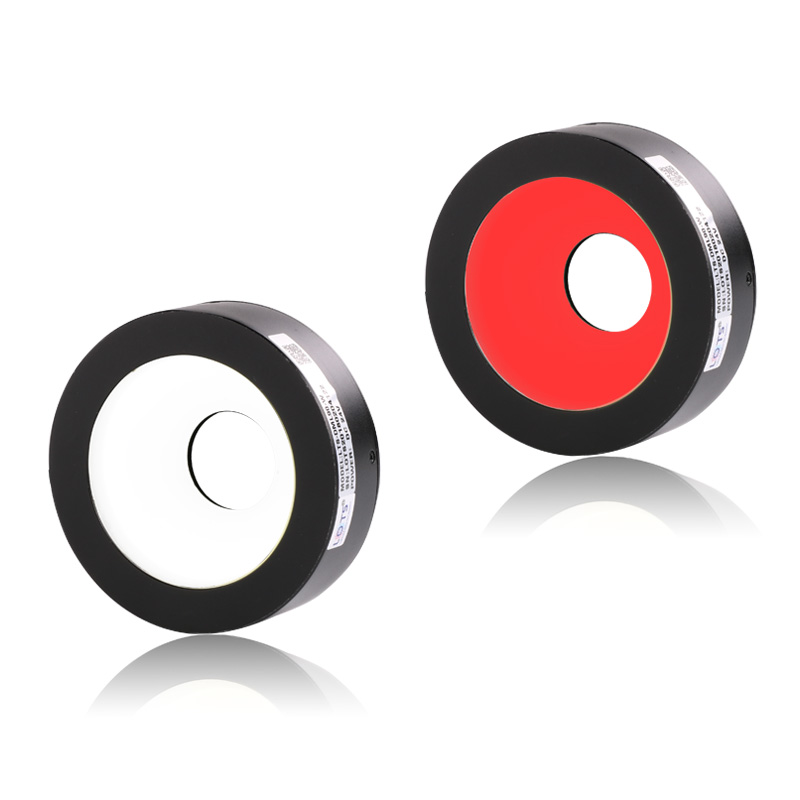

Machine Vision Light
LXV-DML
Milti-direction Shadowless Light
LED lamp is located in the side of the light vertically. The emitting light go through a arc diffuser plate, then get a high uniformity light ray. Can be used in the character recognization and location.
Features
- •LED vertical direction, fasten to light side.
- •2.Special diffuser, reflect ring illumination.
- •3.Provide high uniform emitting to multi slope.
Applications
- •Surface character and pattern recognition.
- •2.Metal object edge location, measure inspection
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-DML70-R/BGW | Red / Blue / Green / White | Outer dia. φ70mm,Inner dia. φ28mm,Height 28mm | 24V | 2.9W/3.6W |
| LXV-DML90-R/BGW | Red / Blue / Green / White | Outer dia. φ90mm,Inner dia. φ28mm,Height 28mm | 24V | 4.4W/5.8W |
| LXV-DML120-R/BGW | Red / Blue / Green / White | Outer dia. φ120mm,Inner dia. φ40mm,Height 28mm | 24V | 5.8W/7.2W |
| * UV & IR light can be customized as required. | - | - | - | - |

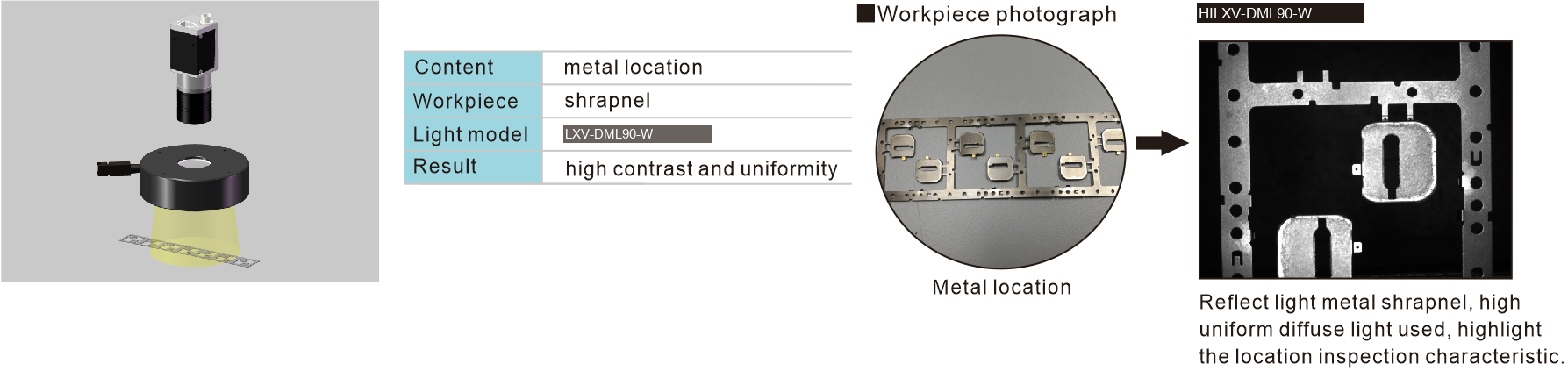

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-DML.

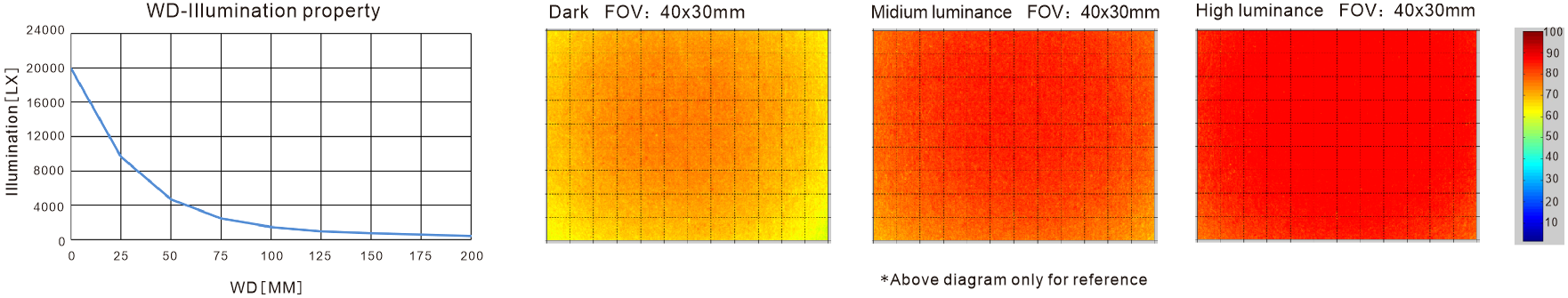

OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention

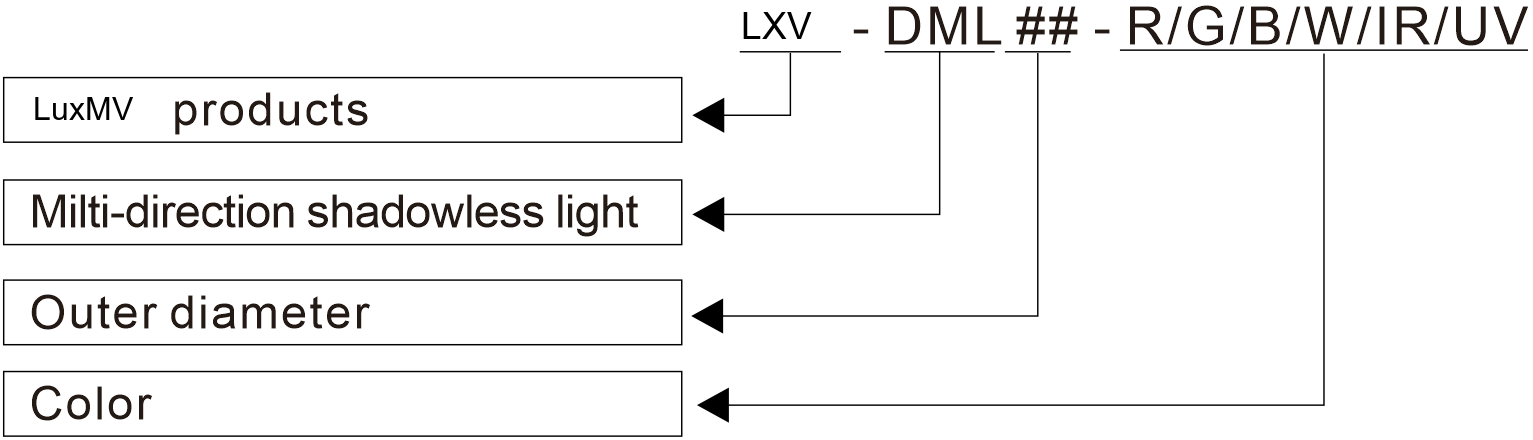

Model Naming Convention
