Machine Vision Light
LXV-FDM

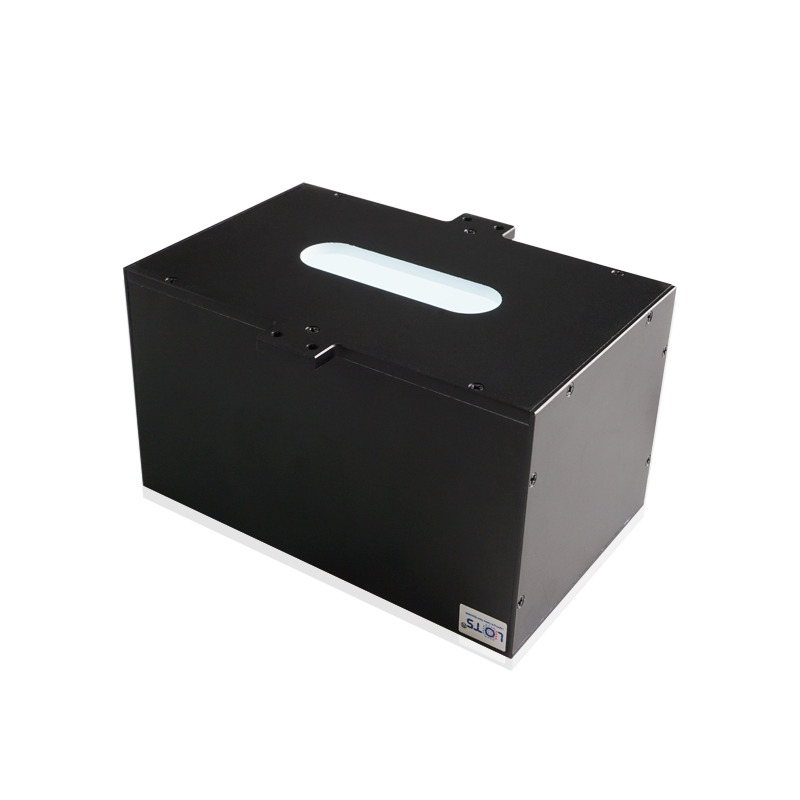

Square Shadowless Light
1.High uniformity, high luminance. 2.Large emitting area, wide range of applications. 3.Can be used in large FOV with multiple cameras. 4.Flexible outline, the center hole can be customized.
Features
- •High uniformity, high luminance.
- •2.Large emitting area, wide range of applications.
- •3.Can be used in large FOV with multiple cameras.
- •4.Flexible outline, the center hole can be customized.
Applications
- •Reflected surface inspection.
- •2.Uneven surface inspection.
- •3.Rubber ring surface inspection.
- •4.Printed character inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-FDM10090-R/GBW | Red / Blue / Green / White | L145xW132xH98(mm) | 24V | 14.4W/18.0W |
| LXV-FDM11256-R/GBW | Red / Blue / Green / White | L140xW110xH80(mm) | 24V | 10.8W/13.7W |
| * UV & IR light can be customized as required. | - | - | - | - |
IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-FDM.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention

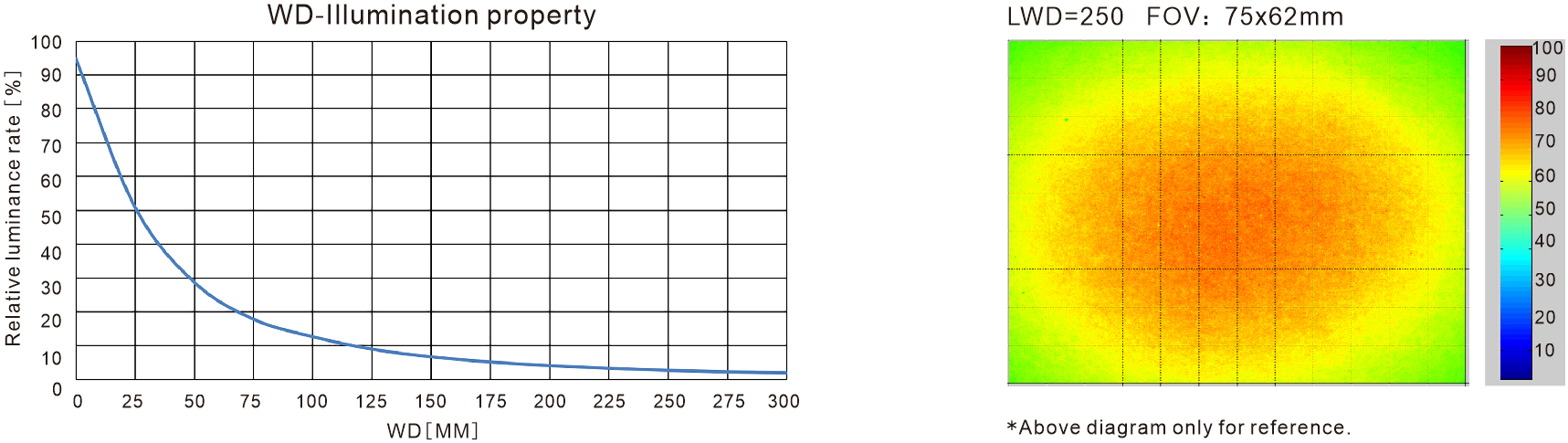

Vector Diagram
