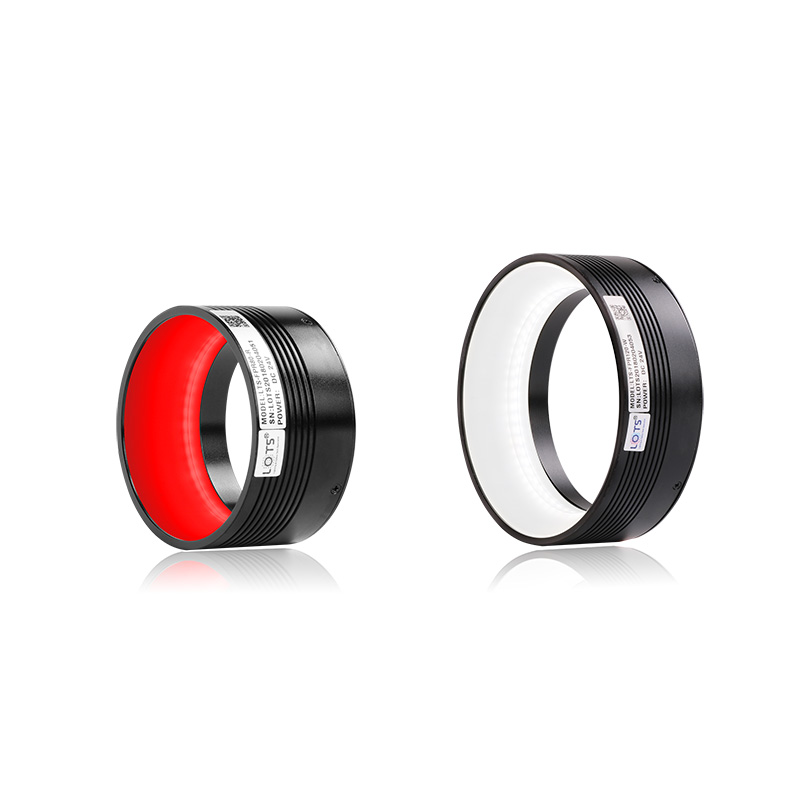

Machine Vision Light
LXV-FPR
Low Angle Shadowless Light
Ring shape and diffused, soft illumination; even illumination in the large square, without the shadow; ideal for flew or edge detection on reflective surfaces.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-FPR50-R/BGW | Red / Blue / Green / White | Outer dia. φ50mm,Inner dia. φ23mm,Height 40mm | 24V | 4.4W/5.4W |
| LXV-FPR67-R/BGW | Red / Blue / Green / White | Outer dia. φ67mm,Inner dia. φ39mm,Height 40mm | 24V | 5.8W/7.2W |
| LXV-FPR80-R/BGW | Red / Blue / Green / White | Outer dia. φ80mm,Inner dia. φ64mm,Height 40mm | 24V | 8.6W/11.5W |
| LXV-FPR94-R/BGW | Red / Blue / Green / White | Outer dia. φ94mm,Inner dia. φ19mm,Height 70mm | 24V | 8.7W/11.1W |
| LXV-FPR100-R/BGW | Red / Blue / Green / White | Outer dia. φ100mm,Inner dia. φ71mm,Height 42mm | 24V | 10.1W/11.6W |
| LXV-FPR120-R/BGW | Red / Blue / Green / White | Outer dia. φ120mm,Inner dia. φ94mm,Height 40mm | 24V | 11.6W/14.4W |
| LXV-FPR140-R/BGW | Red / Blue / Green / White | Outer dia. φ140mm,Inner dia. φ70mm,Height 40mm | 24V | 28.8W/37.5W |
| LXV-FPR150-R/BGW | Red / Blue / Green / White | Outer dia. φ150mm,Inner dia. φ80mm,Height 40mm | 24V | 31.7W/39.9W |
| LXV-FPR160-R/BGW | Red / Blue / Green / White | Outer dia. φ160mm,Inner dia. φ133mm,Height 40mm | 24V | 15.9W/20.2W |
| LXV-FPR180-R/BGW | Red / Blue / Green / White | Outer dia. φ180mm,Inner dia. φ153mm,Height 40mm | 24V | 18.8W/24.5W |
| LXV-FPR230-R/BGW | Red / Blue / Green / White | Outer dia. φ230mm,Inner dia. φ203mm,Height 40mm | 24V | 24.5W/30.3W |
| * UV & IR light can be customized as required. | - | - | - | - |

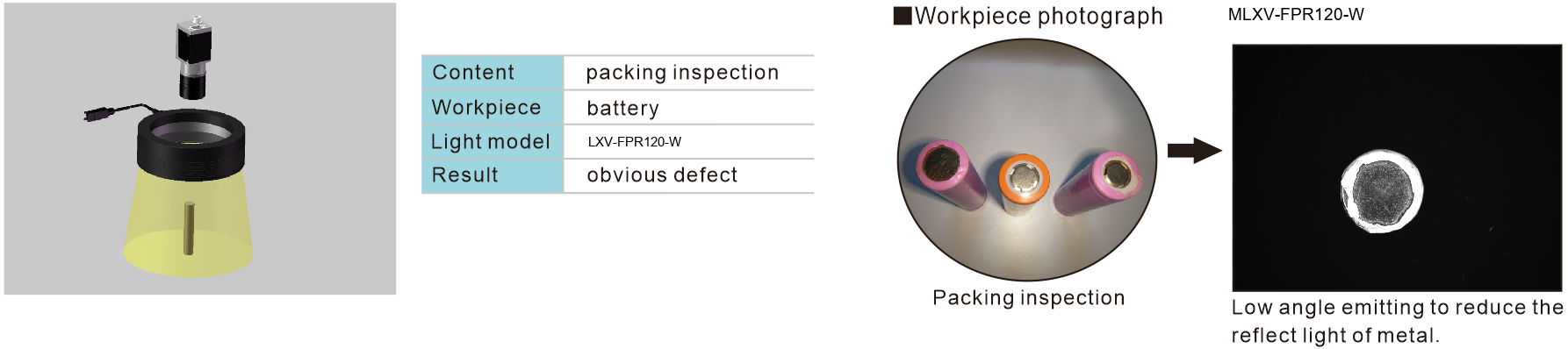

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-FPR.

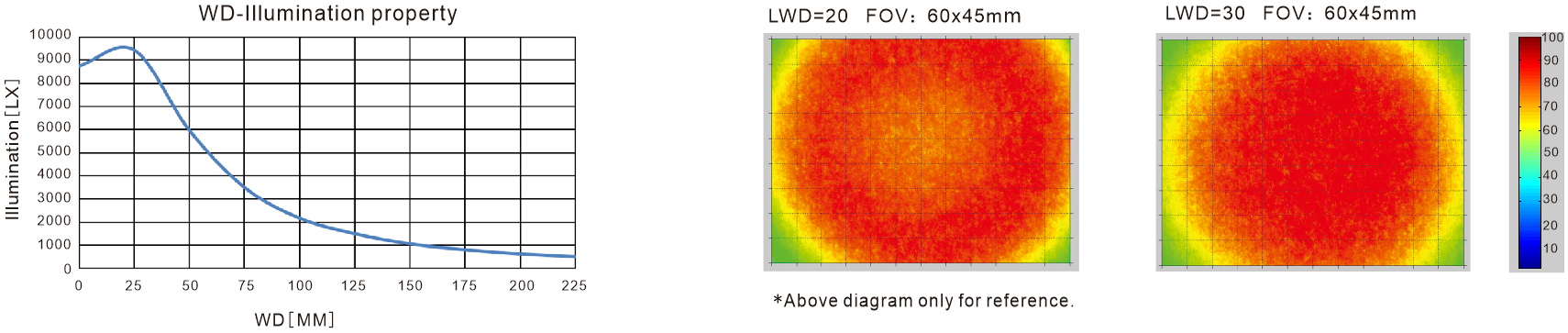

OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention

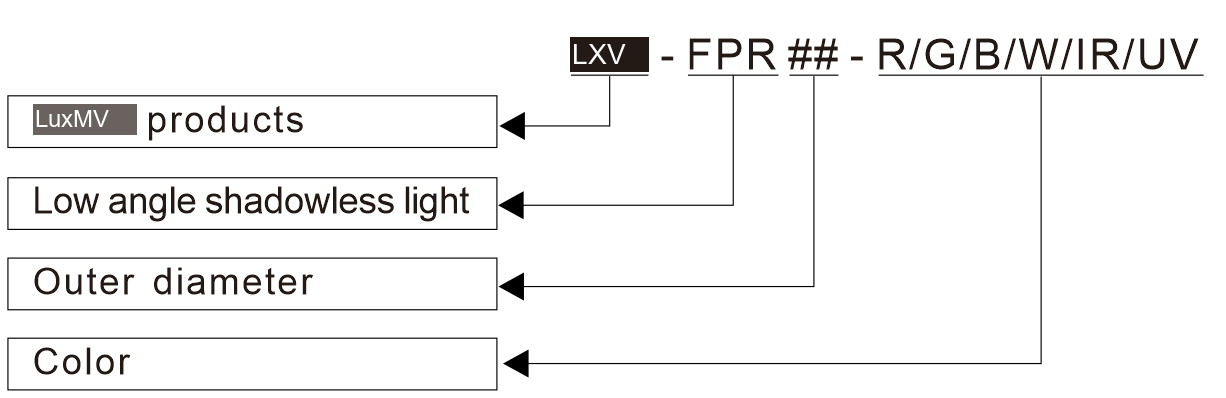

Model Naming Convention
