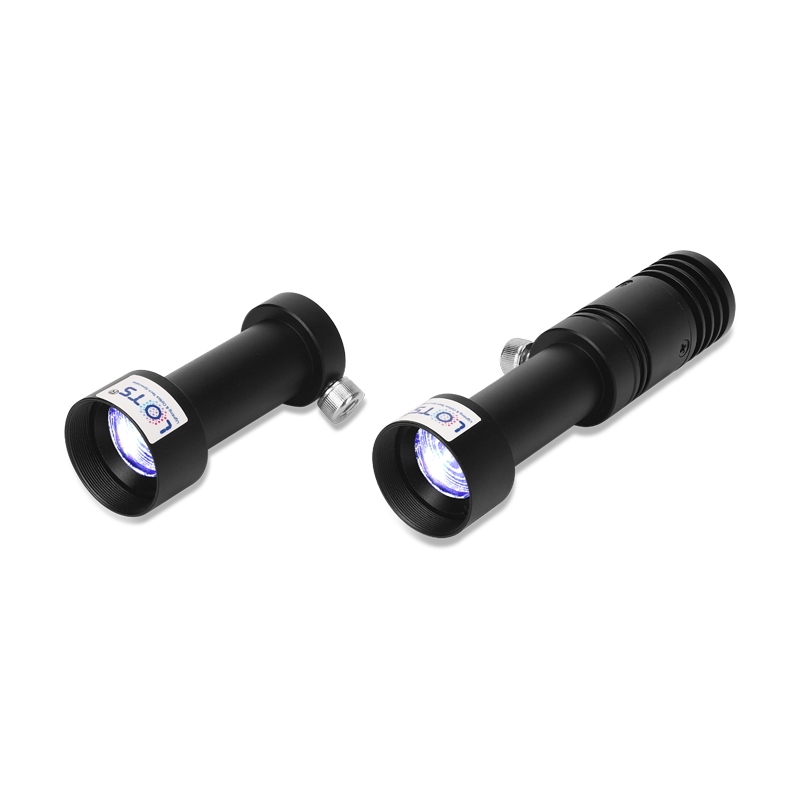

Machine Vision Light
LXV-HL
Spot collector light machine vision
1.Drug inspection 2.LCD visual inspection 3.Lens scratch or broken spot inspection
Features
- •A condenser lens is used to converge the diffused light into a uniform beam.
- •2.The beam parallelism and uniformity are better.
- •3.Can be used as back light to detect liquid impurities.
Applications
- •Drug inspection.
- •2.LCD visual inspection.
- •3.Lens scratch or broken spot inspection.
| Model | Color | Dimension | Power |
|---|---|---|---|
| LXV-HL24-3-W | White | L97.2xW24(mm) | 3W |
| LXV-HL24-4-W | White | L97.2xW24(mm) | 4W |
| LXV-HL24-6-W | White | L113.7xW24(mm) | 6W |
| LXV-HL30-3-W | White | L94.2xW24(mm) | 3W |
| LXV-HL30-4-W | White | L94.2xW24(mm) | 4W |
| LXV-HL30-6-W | White | L110.2xW24(mm) | 6W |
| * UV & IR light can be customized as required. | - | - | - |
IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-HL.

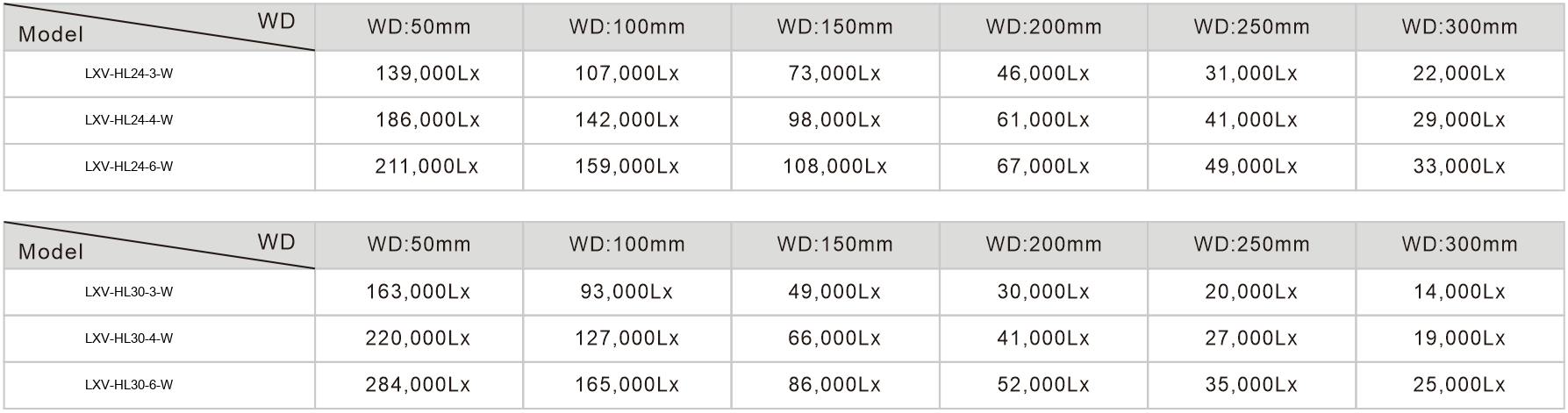

OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention

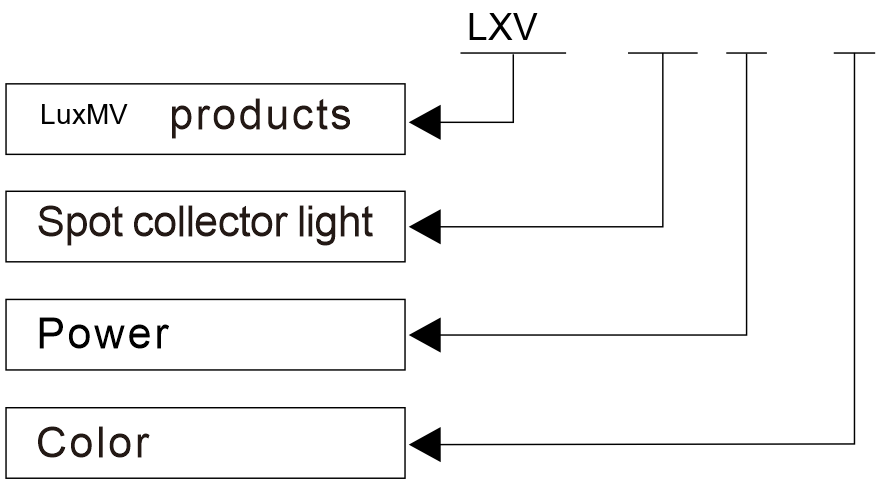

Model Naming Convention

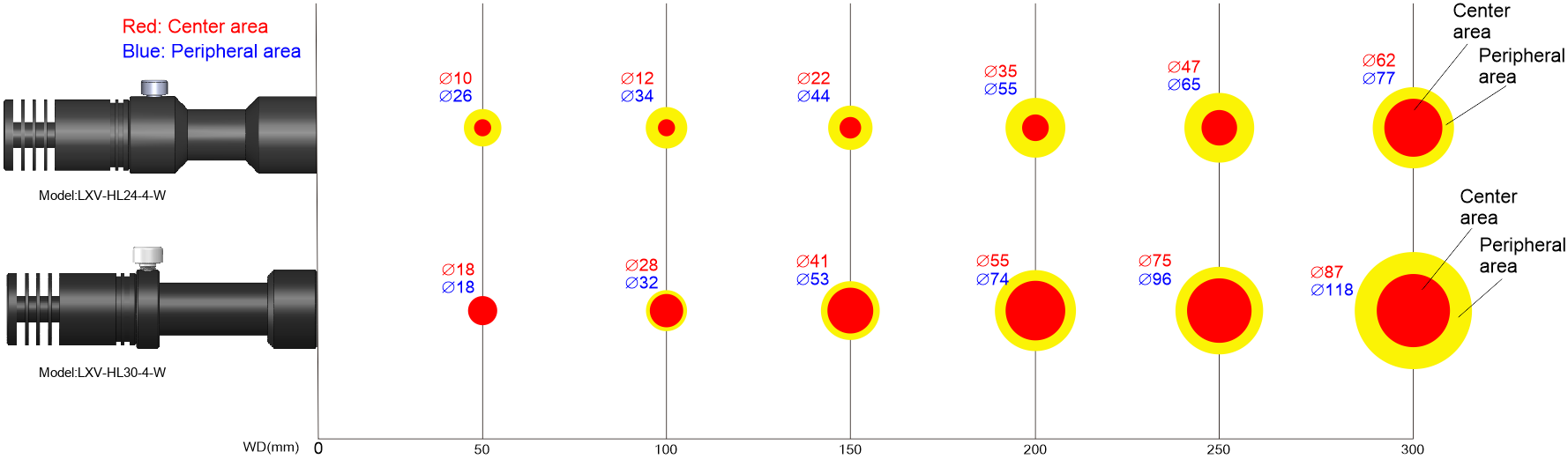

Vector Diagram
