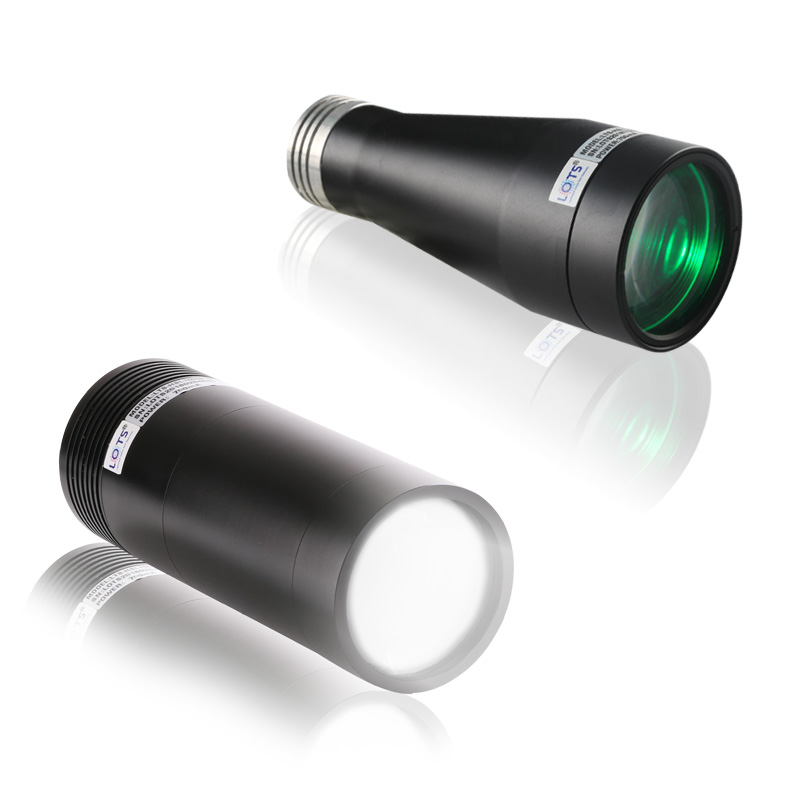

Machine Vision Light
LXV-HSL
Collimated Collector Light
1.PCB printed character inspection. 2.The surface scratch inspection. 3.Edge contour inspection. 4.Mark position inspection.
Features
- •High luminance, concentrated light, good parallelism.
- •2.Apply to long-distance inspection.
- •3.Durable steady structure, high heat dispersion performance.
Applications
- •PCB printed character inspection.
- •2.The surface scratch inspection.
- •3.Edge contour inspection.
- •4.Mark position inspection.
| Model | Color | Dimension | Current | Power |
|---|---|---|---|---|
| LXV-HSL11070-R/BGW | Red / Blue / Green / White | L110xOut dia. φ70(mm) | 1000mA | 3W |
| LXV-HSL15058-RBG | Blue / Green / White | L150.5xOut dia. φ58(mm) | 1000mA | 3W |
| LXV-HSL15058-W | White | L150.5xOut dia. φ58(mm) | 1500mA | 5W |
| * UV & IR light can be customized as required. | - | - | - | - |

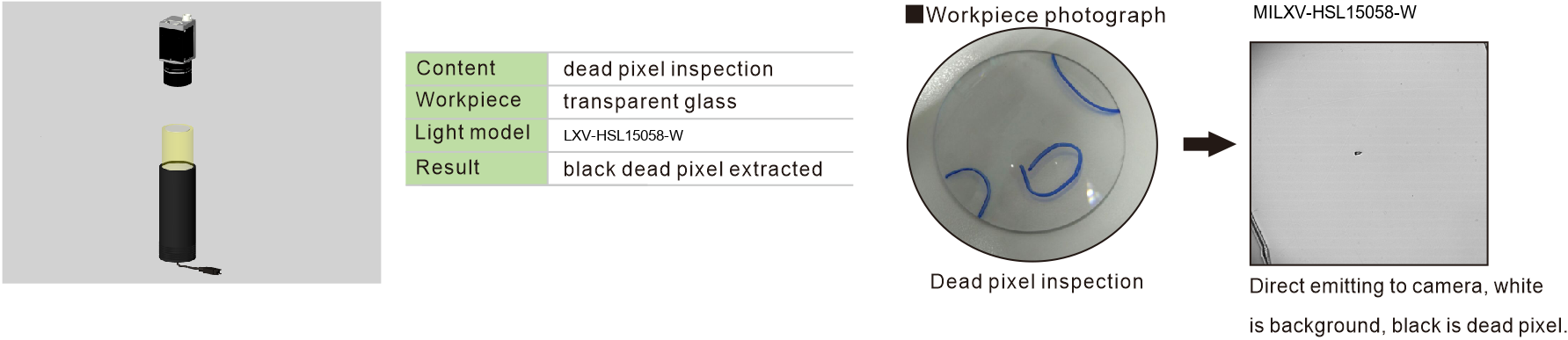

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-HSL.

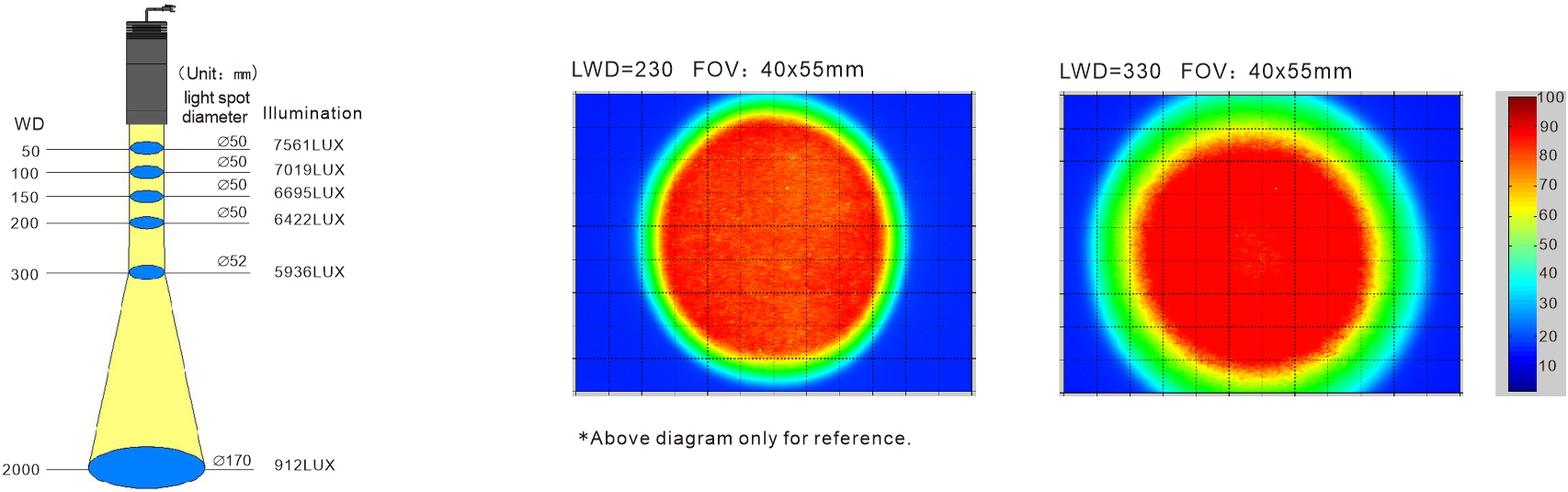

OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
