Controller
LXV-IP

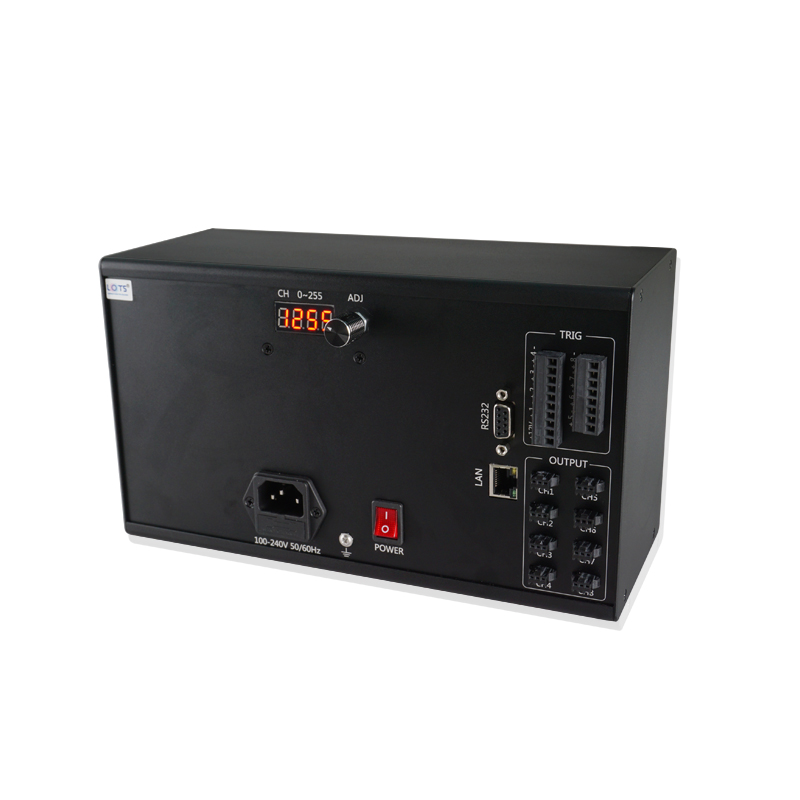

Dust Proof Controller
LuxMV has developed IP series dustproof controller according to customer demand, and the dustproof level of this controller has reached IP54 level, providing customers with more applications, ensuring product stability and prolonging life.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-RN7390-R/BGW | Red / Blue / Green / White | Out dia. φ73,Inner Dia. φ25,Height 27mm | 24V | 2.6W/4.3W |
| LXV-RN13090-R/BGW | Red / Blue / Green / White | Out dia. φ130,Inner Dia. φ45,Height 40mm | 24V | 8.4W/14.0W |
| LXV-FT10073-R/BGW | Red / Blue / Green / White | L110.5xW83.5xH39.5(mm) | 24V | 6.5W/11.9W |
| LXV-FT182130-R/BGW | Red / Blue / Green / White | L192.5xW144xH30.5(mm) | 24V | 9.6W/19.2W |
| LXV-BR9032-R/BGW | Red / Blue / Green / White | L104xW42.5xH28(mm) | 24V | 2.4W/4.1W |
| LXV-BR25425-R/BGW | Red / Blue / Green / White | L264.5xW35.5xH28(mm) | 24V | 5.3W/9.6W |
| LXV-BR37540-R/BGW | Red / Blue / Green / White | L385.5xW50.5xH28(mm) | 24V | 7.4W/11.8W |
| LXV-BR49525-R/BGW | Red / Blue / Green / White | L505.5xW35.5xH28(mm) | 24V | 5.8W/10.6W |
| LXV-LIN18420-R/BGW | Red / Blue / Green / White | L204xW79xH40(mm) | 24V | 44.4W |
| * UV & IR light can be customized as required. | - | - | - | - |

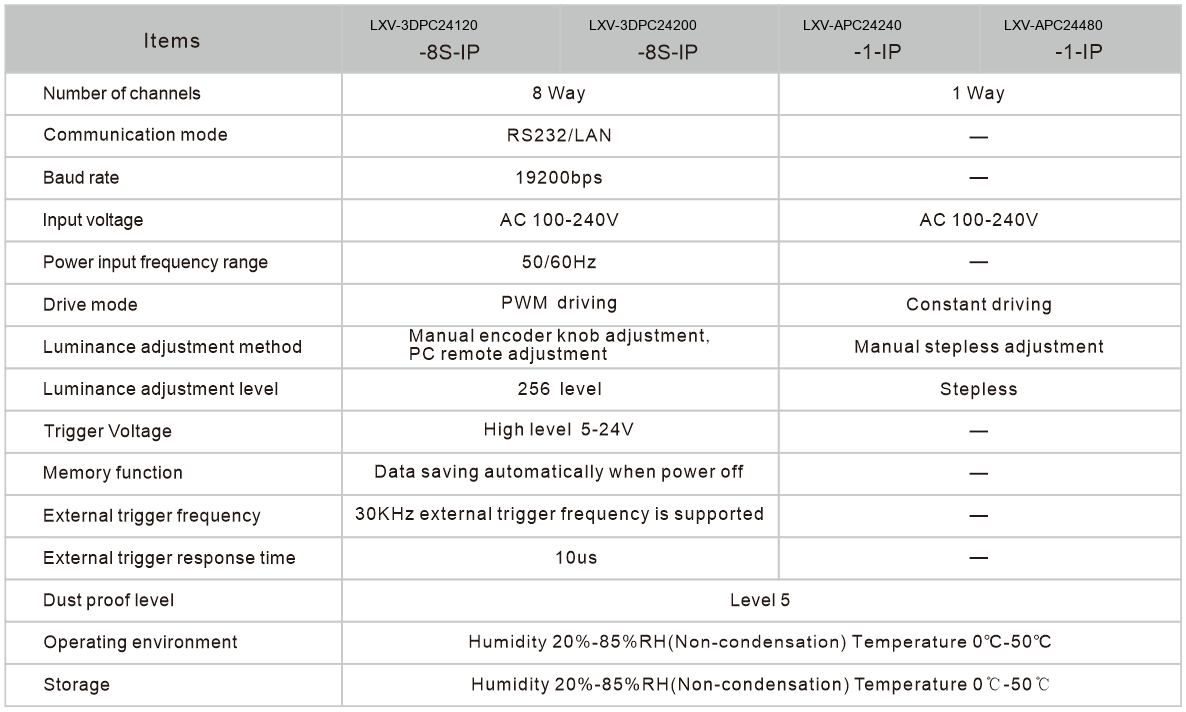

| Product | Model | Output voltage | Total output power | One way Max.output power | Number of channels | External trigger voltage |
|---|---|---|---|---|---|---|
| Dust Proof Controller | LXV-3DPC24120-8S-IP | 24V | 120W | 60W | 8 | Communication, external trigger, luminance level, display and etc. |
| LXV-3DPC24200-8S-IP | 24V | 200W | 60W | 8 | - | - |
| LXV-APC24240-1-IP | 24V | 240W | 240W | 1 | — | - |
| LXV-APC24480-1-IP | 24V | 480W | 480W | 1 | — | - |
IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-IP.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
