Machine Vision Light
LXV-LBR

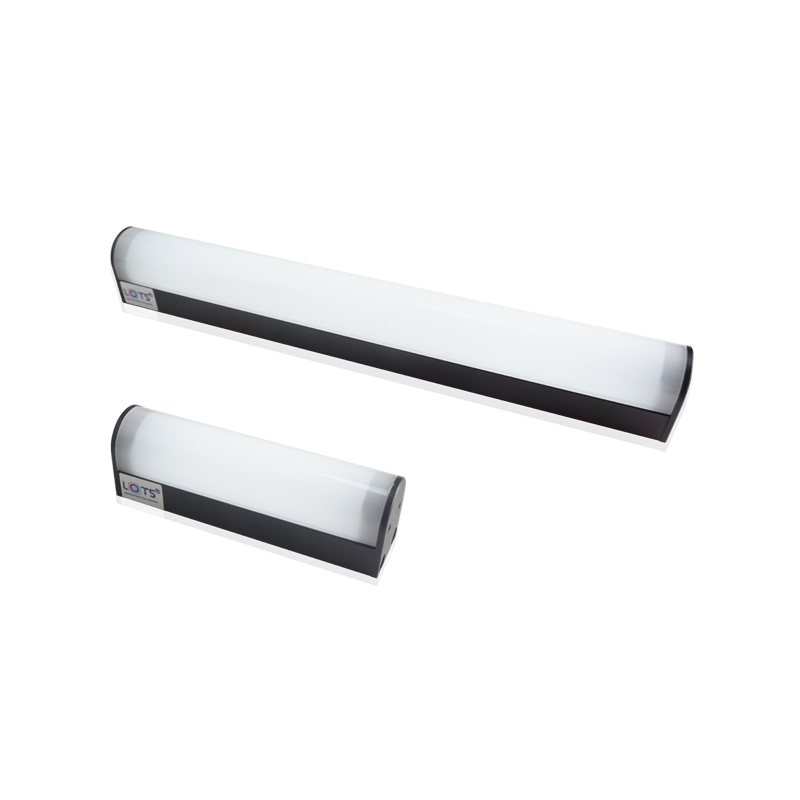

Arc Bar Light
1.It is applicable to computer, remote control keyboard inspection, etc.
Features
- •This series of products uses a curved diffusion plate with uniform LED to achieve uniform lighting over a wide range; the size can be flexibly customized, and the four-side strip lights can be freely combined, with a wide range of applicability.
Applications
- •It is applicable to computer, remote control keyboard inspection, etc.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-LBR5420-R/BGW | Red / Blue / Green / White | L70xW20.3xH27(mm) | 24V | 1.0W/1.0W |
| LXV-LBR7020-R/BGW | Red / Blue / Green / White | L86xW20.3xH27(mm) | 24V | 1.0W/1.5W |
| LXV-LBR10020-R/BGW | Red / Blue / Green / White | L116xW20.3xH27(mm) | 24V | 1.5W/2.0W |
| LXV-LBR16420-R/BGW | Red / Blue / Green / White | L180xW20.3xH27(mm) | 24V | 2.4W/2.9W |
| LXV-LBR18020-R/BGW | Red / Blue / Green / White | L196xW20.3xH27(mm) | 24V | 2.9W/3.4W |
| LXV-LBR40420-R/BGW | Red / Blue / Green / White | L420xW20.3xH27(mm) | 24V | 5.8W/7.7W |
| LXV-LBR65020-R/BGW | Red / Blue / Green / White | L666xW20.3xH27(mm) | 24V | 14.3W/18.3W |
| LXV-LBR70020-R/BGW | Red / Blue / Green / White | L716xW20.3xH27(mm) | 24V | 16.3W/20.3W |
| * UV & IR light can be customized as required. | - | - | - | - |

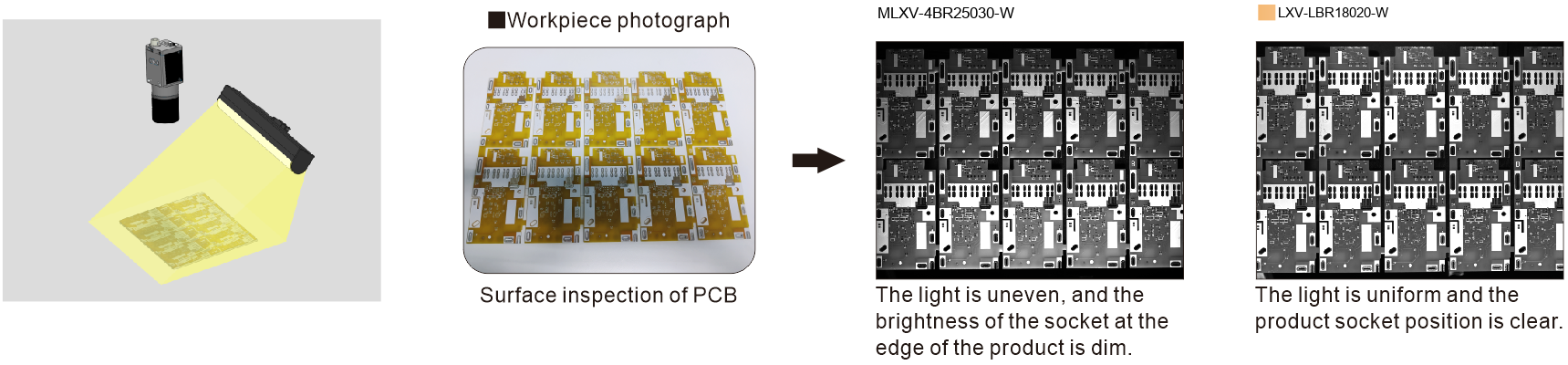

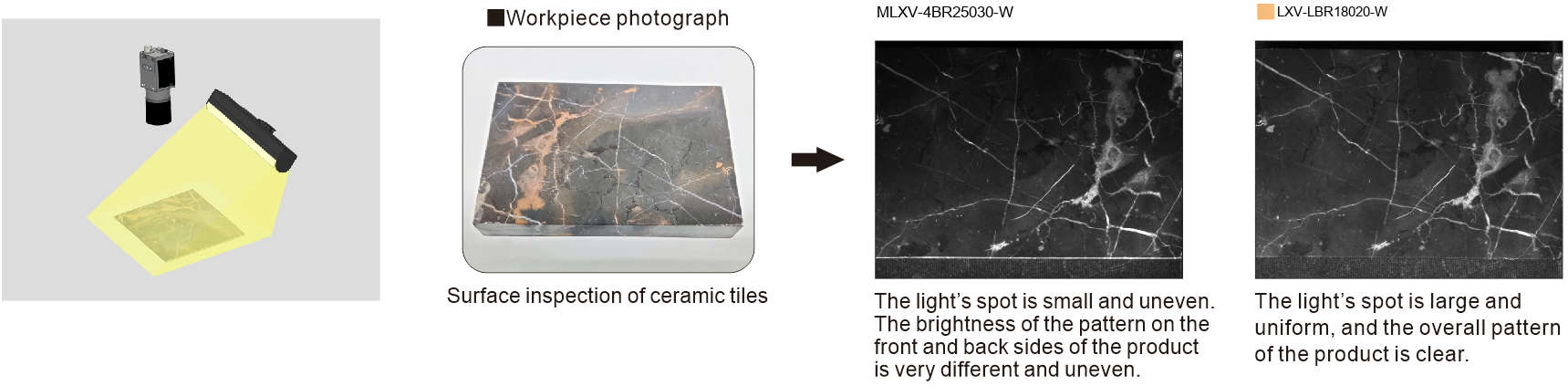

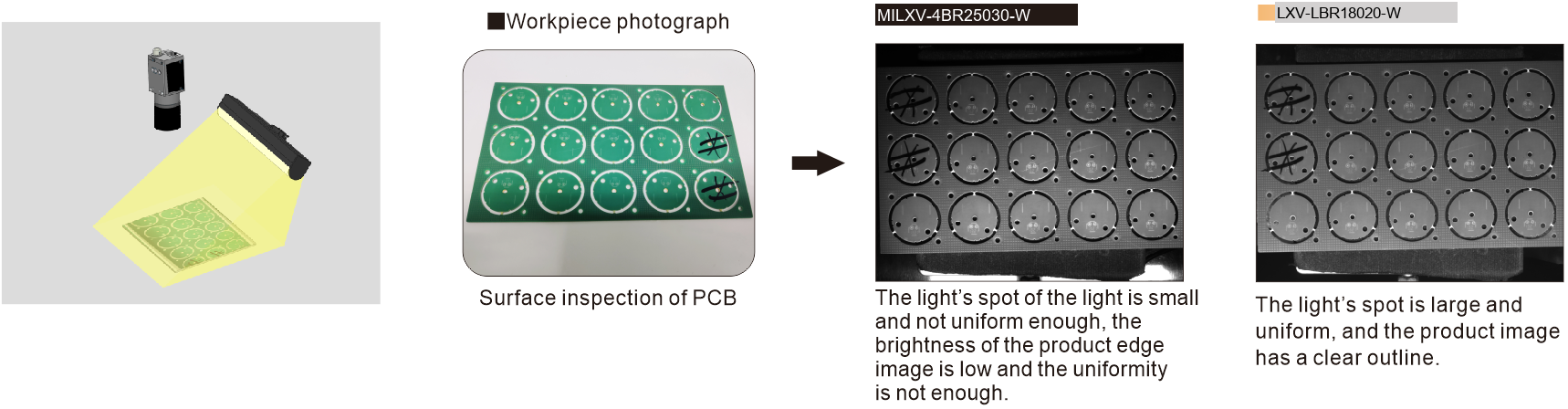

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-LBR.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
