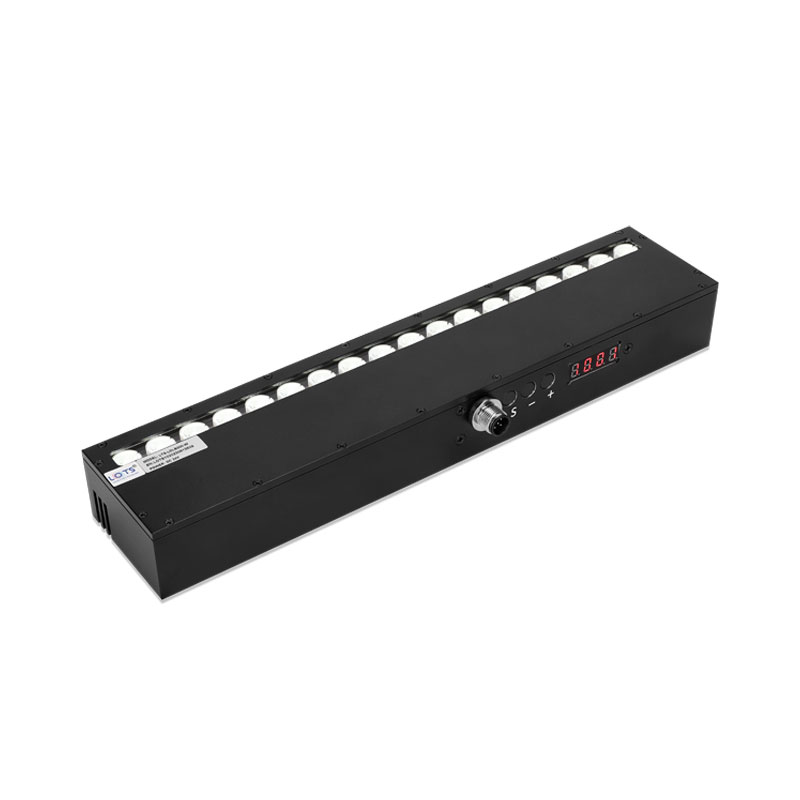

Machine Vision Light
LXV-LDLB
Bar Light With Build-in Overdrive

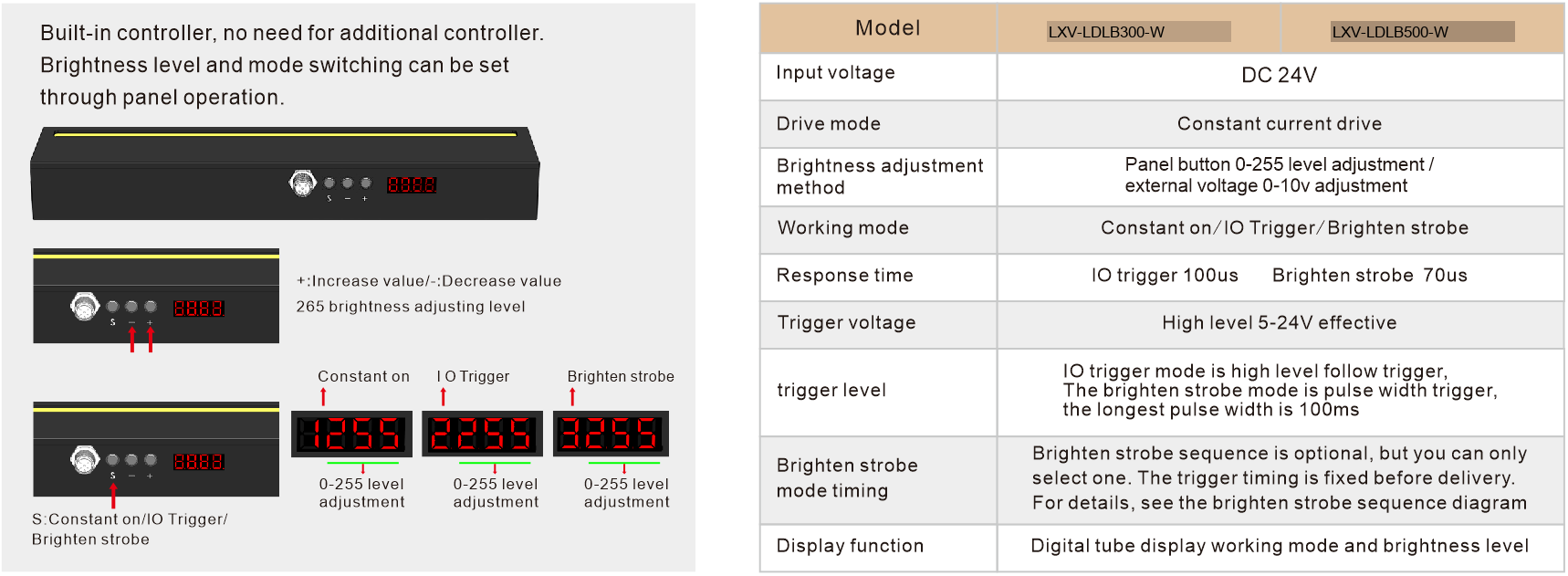

1.Suitable for illumination of long distance and large objects. 2.Light source and control module integrated design, powerful function. 3.DC 24V power supply, Constant current, no flicker, 0-255 level adjustment. 4.Constant on/IO trigger/ brighten strobe can be switched.
Features
- •Suitable for illumination of long distance and large objects.
- •2.Light source and control module integrated design, powerful function.
- •3.DC 24V power supply, Constant current, no flicker, 0-255 level adjustment.
- •4.Constant on/IO trigger/ brighten strobe can be switched.
- •5.Waterproof level up to IP54
Applications
- •Automobile industry.
- •2.Packaging industry.
- •3.Food industry.
- •4.Electrical industry.
| Model | Color | Dimension | Supply voltage | Power consumption |
|---|---|---|---|---|
| LXV-LDLB300-W | White | L312xW65xH38(mm) | DC 24V | 75W |
| LXV-LDLB500-W | White | L517xW65xH38(mm) | DC 24V | 100W |
| * UV & IR light can be customized as required. | - | - | - | - |

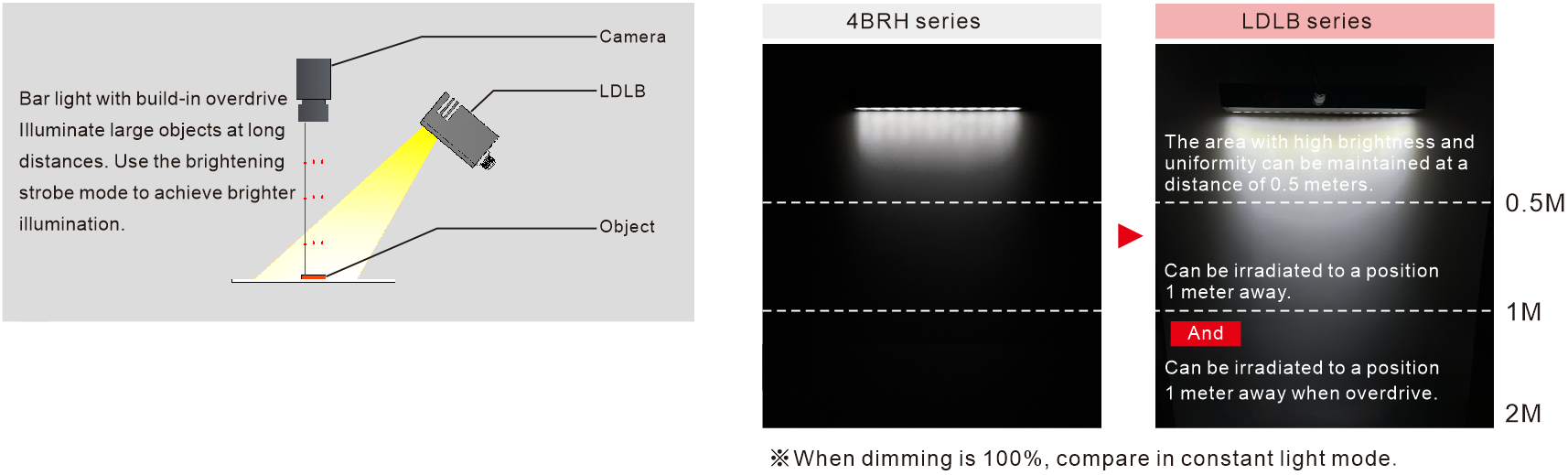

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-LDLB.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
