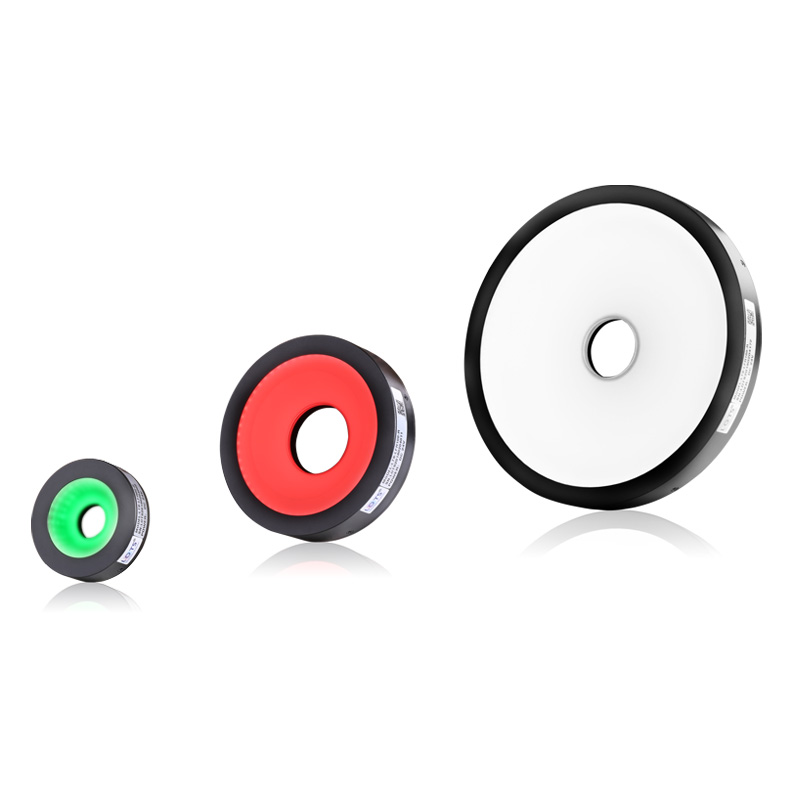

Machine Vision Light
LXV-LFR
Flat Shadowless Light
The LEDs are horizontally arranged on a flexible PCB and the object is illuminated evenly by reflecting, which can enhance the surface features (such as laser marking and etching) and the contrast of surface defects.
Features
- •LED horizontal direction, fasten to light side.
- •2.Luminance can replace the ring light, to reach
- •more uniform effect.
- •3.Shadowless, low angle lighting system.
Applications
- •The inspection of date on the food packing.
- •2.The highlight or reflect surface of workpiece inspection.
- •3.IPA precision components boundary dimension inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-LFR60-R/BGW | Red / Blue / Green / White | Outer dia. φ60mm,Inner dia. φ18mm,Height 15mm | 24V | 2.2W/2.9W |
| LXV-LFR70-R/BGW | Red / Blue / Green / White | Outer dia. φ70mm,Inner dia. φ26mm,Height 15mm | 24V | 3.3W/3.6W |
| LXV-LFR100-R/BGW | Red / Blue / Green / White | Outer dia. φ100mm,Inner dia. φ35mm,Height 21mm | 24V | 6.2W/7.6W |
| LXV-LFR120-R/BGW | Red / Blue / Green / White | Outer dia. φ120mm,Inner dia. φ42mm,Height 22mm | 24V | 6.5W/8.7W |
| LXV-LFR130-R/BGW | Red / Blue / Green / White | Outer dia. φ130mm,Inner dia. φ45mm,Height 22mm | 24V | 7.6W/9.8W |
| LXV-LFR150-R/BGW | Red / Blue / Green / White | Outer dia. φ150mm,Inner dia. φ80mm,Height 23mm | 24V | 8.7W/10.8 |
| LXV-LFR160-R/BGW | Red / Blue / Green / White | Outer dia. φ160mm,Inner dia. φ30mm,Height 18.5mm | 24V | 6.2W/7.6W |
| LXV-LFR180-R/BGW | Red / Blue / Green / White | Outer dia. φ180mm,Inner dia. φ50mm,Height 19.5mm | 24V | 8.7W/10.1W |
| * UV & IR light can be customized as required. | - | - | - | - |

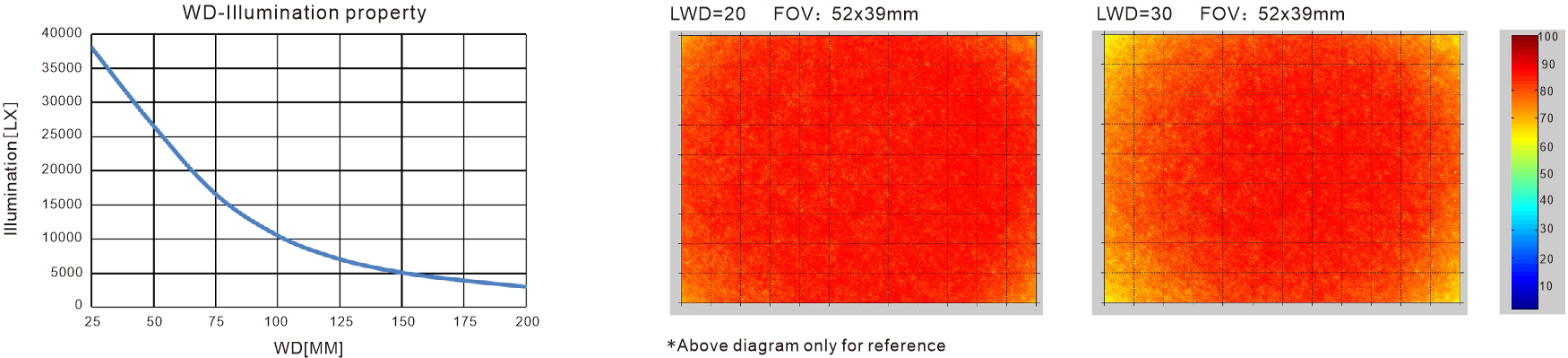

IMAGING COMPARISON
Application Effect Analysis

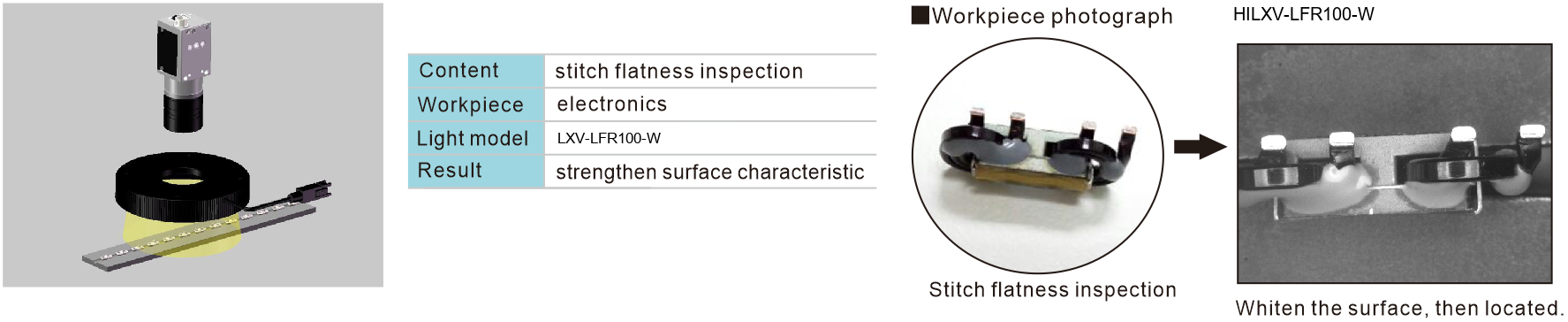

Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-LFR.
