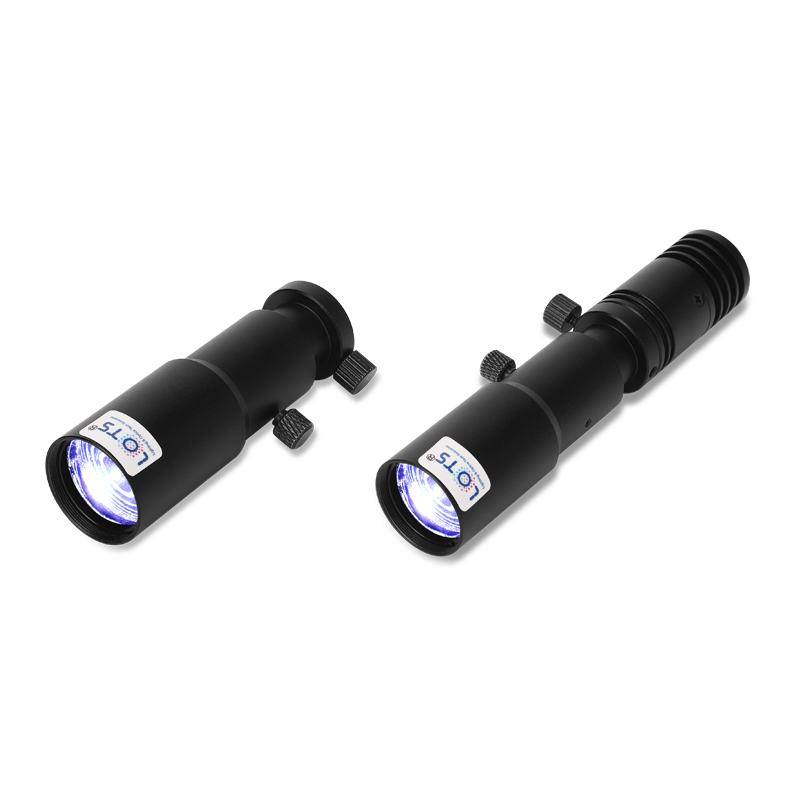

Machine Vision Light
LXV-ML
Spot collector light machine vision
1.Drug inspection 2.LCD visual inspection 3.Lens scratch or broken spot inspection
Features
- •The collector lens adopts multi-lens and adjustable focal length design, which can be adjusted to the most suitable brightness and spot size under different working distances, and has a wider application range.
Applications
- •Drug inspection
- •2.LCD visual inspection
- •3.Lens scratch or broken spot inspection
| Model | Color | Dimension | Power |
|---|---|---|---|
| LXV-ML50-3-W | White | L97.2xW25(mm) | 3W |
| LXV-ML50-6-W | White | L114.2xW25(mm) | 6W |
| LXV-ML50-10-W | White | L123.1xW25(mm) | 10W |
| LXV-ML70-3-W | White | L118.7xW24(mm) | 3W |
| LXV-ML70-4-W | White | L118.7xW24(mm) | 4W |
| LXV-ML70-6-W | White | L135.2xW24(mm) | 6W |
| LXV-ML70-10-W | White | L144.1xW51(mm) | 10W |
| * UV & IR light can be customized as required. | - | - | - |

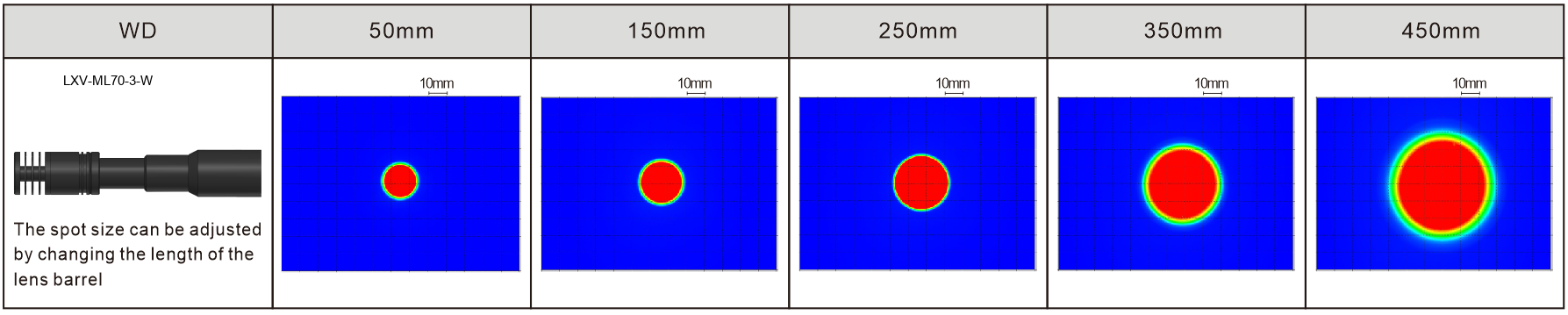

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-ML.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector Diagram
