LXV-NIR
Infrared Light
NIR light series is composed of LEDs which wavelength is 850-940nm (optional). The longer wavelength is, the better penetration is. The wavelength can be chose by CCD chip sensor of infrared camera. An ideal image is obtained by using the characteristic of good penetration. It is suitable for recognized foreign matters and characters etc. through solid or liquid dyes and ink.
Features
- •Strong penetration, wavelength optional: 850/940nm.
- •2.Use with high sensitive CCD of near infrared field.
- •3.Use with infrared glass filter, adapt to strong ambient light applications.
Applications
- •Monitoring.
- •2.Packing ( through the plastic packing).
- •3.Foreign matter of wine bottle inspection.
- •4.Electronic, semiconductor inspection.

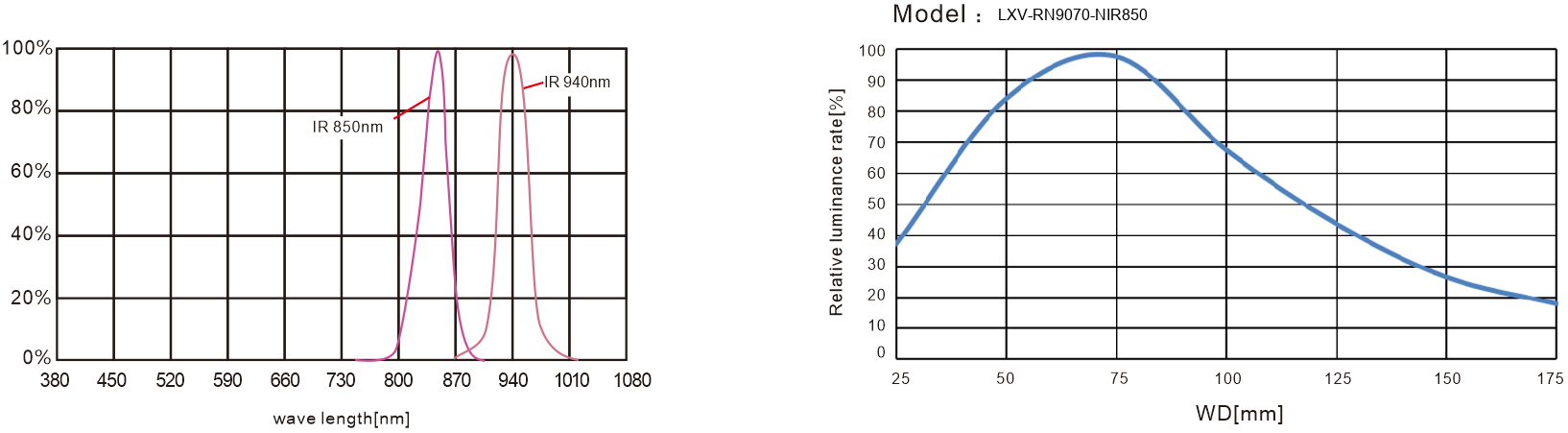

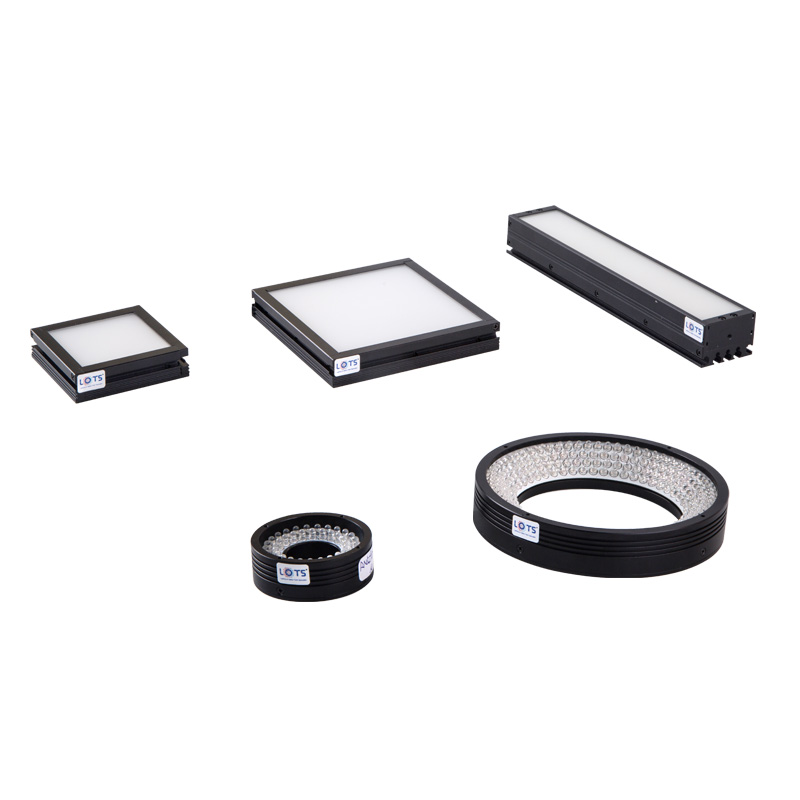

| Product | Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|---|
| Ring infrared light | LXV-RN5060-NIR | IR (Infrared) | Out dia. φ50,Inner Dia. φ28.5,Height 19.5mm | 24V | 1.2W |
| LXV-RN7090-NIR | - | Out dia. φ70,Inner Dia. φ36,Height 20.5mm | 24V | 2.6W | - |
| LXV-RN12030-NIR | - | Out dia. φ120,Inner Dia. φ80,Height 23mm | 24V | 4.4W | - |
| Coaxial infrared light | LXV-3COX40-NIR | IR (Infrared) | L74xW50xH50(mm) | 24V | 1.5W |
| LXV-3COX50-NIR | - | L84xW60xH60(mm) | 24V | 2.4W | - |
| Back infrared light | LXV-4FT5050-NIR | IR (Infrared) | L64xW64xH17(mm) | 24V | 2.4W |
| LXV-4FT7070-NIR | - | L84xW84xH17(mm) | 24V | 3.9W | - |
| LXV-4FT8080-NIR | - | L94xW94xH17(mm) | 24V | 4.4W | - |
| LXV-4FT100100-NIR | - | L114xW114xH17(mm) | 24V | 7.7W | - |
| LXV-4FT150150-NIR | - | L164xW164xH17(mm) | 24V | 11.6W | - |
| Bar infrared light | LXV-4BR6016-NIR | IR (Infrared) | L72xW22xH26(mm) | 24V | 1.0W |
| LXV-4BR9016-NIR | - | L102xW22xH26(mm) | 24V | 1.5W | - |
| LXV-4BR18016-NIR | - | L192xW22xH26(mm) | 24V | 2.9W | - |
| LXV-4BR7530-NIR | - | L87xW36xH26(mm) | 24V | 2.2W | - |
| LXV-4BR12530-NIR | - | L137xW36xH26(mm) | 24V | 3.6W | - |
| * UV & NIR light can be customized as required. | - | - | - | - | - |
