Machine Vision Light
LXV-RNH

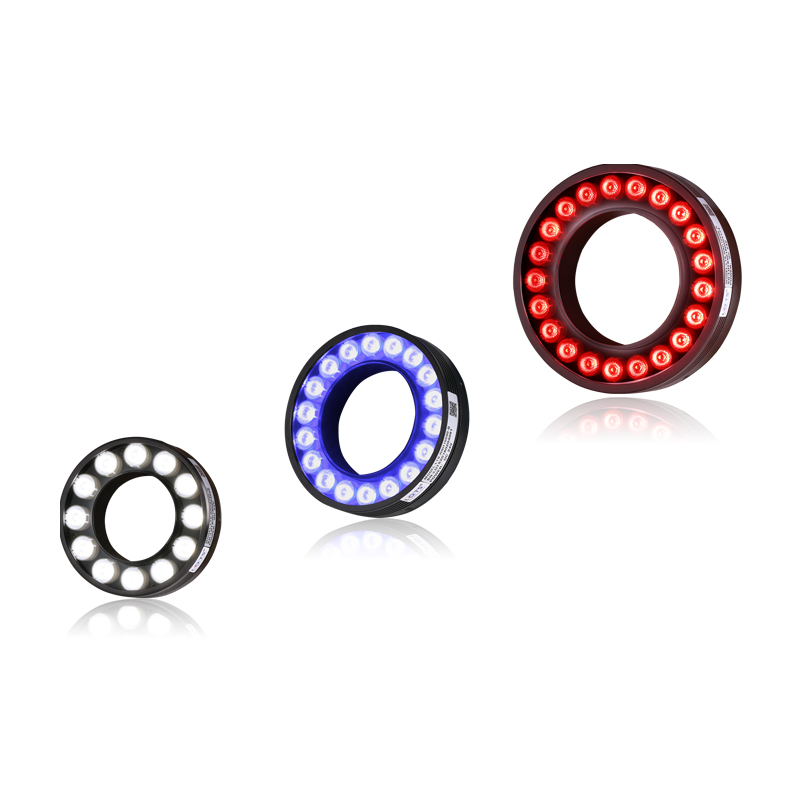

High Power Ring Light Industrial
1.High power LED used, uniform arraying. 2.Triple luminance than common ring light. 3.Good thermal design, steady emitting, long life-span. 4.Dimension can be customized.
Features
- •High power LED used, uniform arraying.
- •2.Triple luminance than common ring light.
- •3.Good thermal design, steady emitting, long life-span.
- •4.Dimension can be customized.
Applications
- •Long distance Illumination.
- •2.High speed assembly line illumination.
- •3.Large area illumination.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-RNH4590-BGW | Blue / Green / White | Outer dia. φ45mm,Inner dia. φ13mm,Height 22mm | 24V | 3.2W |
| LXV-RNH8490-R/BGW | Red / Blue / Green / White | Outer dia. φ84mm,Inner dia. φ47mm,Height 23.5mm | 24V | 3.2W/6.3W |
| LXV-RNH10090-R/BGW | Red / Blue / Green / White | Outer dia. φ100mm,Inner dia. φ60mm,Height 24mm | 24V | 6.3W/9.4W |
| LXV-RNH11090-R/BGW | Red / Blue / Green / White | Outer dia. φ110mm,Inner dia. φ70mm,Height 24mm | 24V | 6.3W/9.4W |
| LXV-RNH12090-R/BGW | Red / Blue / Green / White | Outer dia. φ120mm,Inner dia. φ70mm,Height 33mm | 24V | 6.3W/9.4W |
| LXV-RNH15090-R/BGW | Red / Blue / Green / White | Outer dia. φ150mm,Inner dia. φ100mm,Height 33mm | 24V | 6.3W/12.5W |
| LXV-RNH22090-R/BGW | Red / Blue / Green / White | Outer dia. φ220mm,Inner dia. φ172mm,Height 24mm | 24V | 12.5W/18.8W |
| LXV-RNH30090-R/BGW | Red / Blue / Green / White | Outer dia. φ300mm,Inner dia. φ252mm,Height 24mm | 24V | 15.6W/25.0W |
| * UV & IR light can be customized as required. | - | - | - | - |

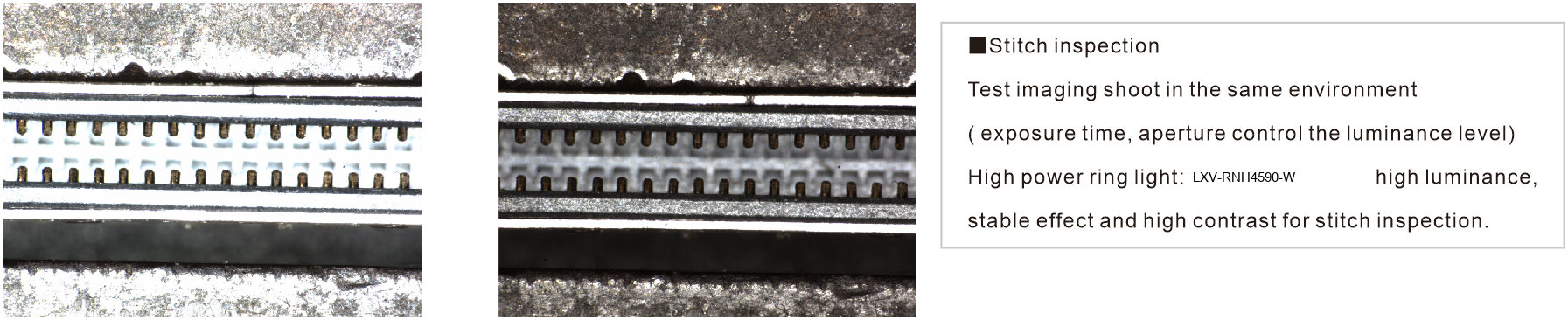

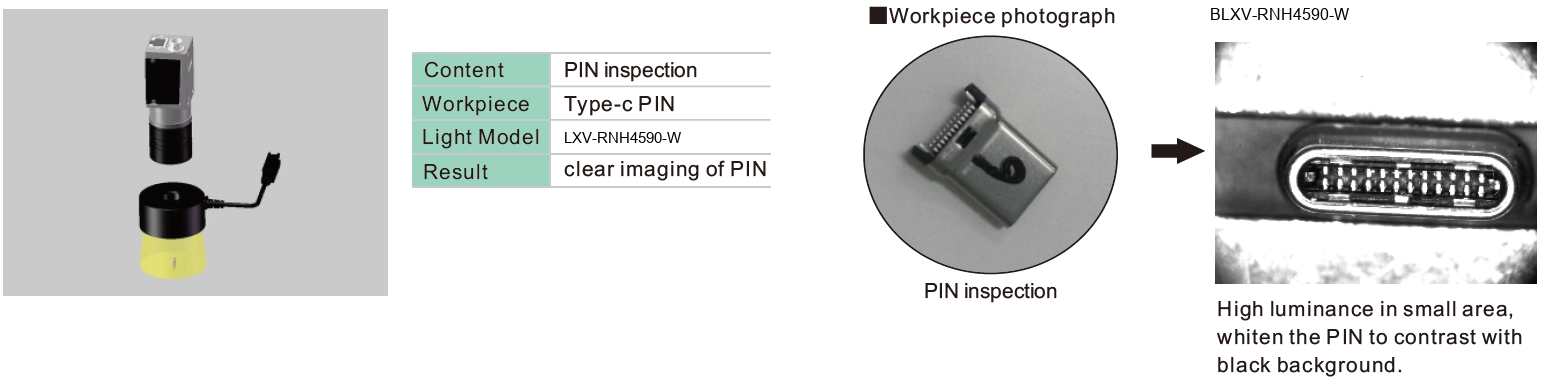

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-RNH.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention

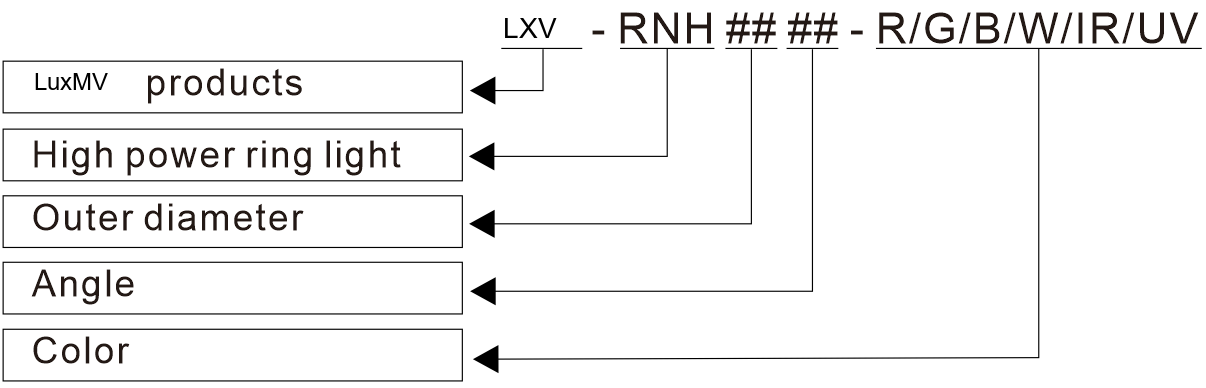

Model Naming Convention
Vector Diagram
DIRECT ENQUIRY
Get a Customized Quotation
Need specific dimensions, custom wavelength LED combinations, or special cabling? Our optical engineering and sales offices are ready to assist.
