Machine Vision Light
LXV-RNMU

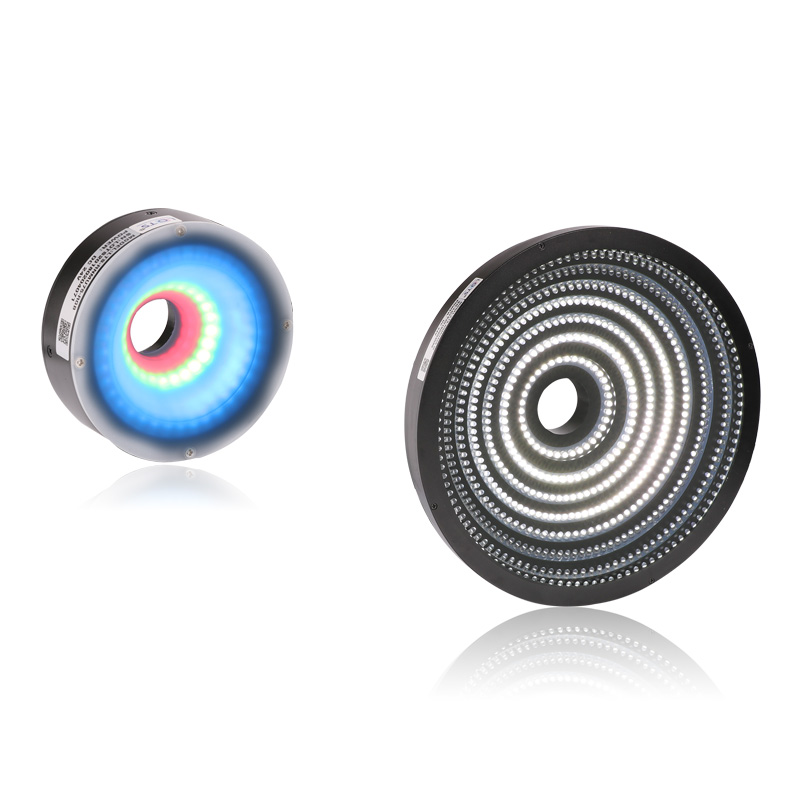

Multi-angle Ring Light
It adopts high intensity and high brightness LEDs and its brightness can be controlled independently in each angle to inspect scratches, stains and other defects on glass surface accurately.
Features
- •Multiple angle can be controlled independently, compact structure.
- •2.Can customized that multiple color can be controlled independently.
Applications
- •Glass surface scratch inspection, multiple characteristics of the microscope inspection
- •2.Seal ring surface defects inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-RNMU50-B | Blue | Out dia. φ49,Inner Dia. φ22,Height 50mm | 24V | 3.1W |
| LXV-RNMU60-W | White | Out dia. φ60,Inner Dia. φ16,Height 26mm | 24V | 3.6W |
| LXV-RNMU75-RGBB | Red / Green / Blue | Out dia. φ80,Inner Dia. φ25,Height 38.5mm | 24V | 7.1W |
| LXV-RNMU80-RRBB | Red / Blue | Out dia. φ203.2,Inner Dia. φ95.25,Height 40mm | 24V | 5.2W |
| LXV-RNMU120-W | White | Out dia. φ120,Inner Dia. φ40,Height 45mm | 24V | 10.5W |
| LXV-RNMU150-W | White | Out dia. φ150,Inner Dia. φ60,Height 53mm | 24V | 32.1W |
| LXV-RNMU180-W | Blue | Out dia. φ180,Inner Dia. φ116,Height 50mm | 24V | 36.8W |
| LXV-RNMU203-W | White | Out dia. φ203.2,Inner Dia. φ95.25,Height 40mm | 24V | 18.8W |
| LXV-RNMU225-W | White | Out dia. φ225,Inner Dia. φ35,Height 64mm | 24V | 31.4W |
| * UV & IR light can be customized as required. | - | - | - | - |
OPTICAL DESIGN & NAMING

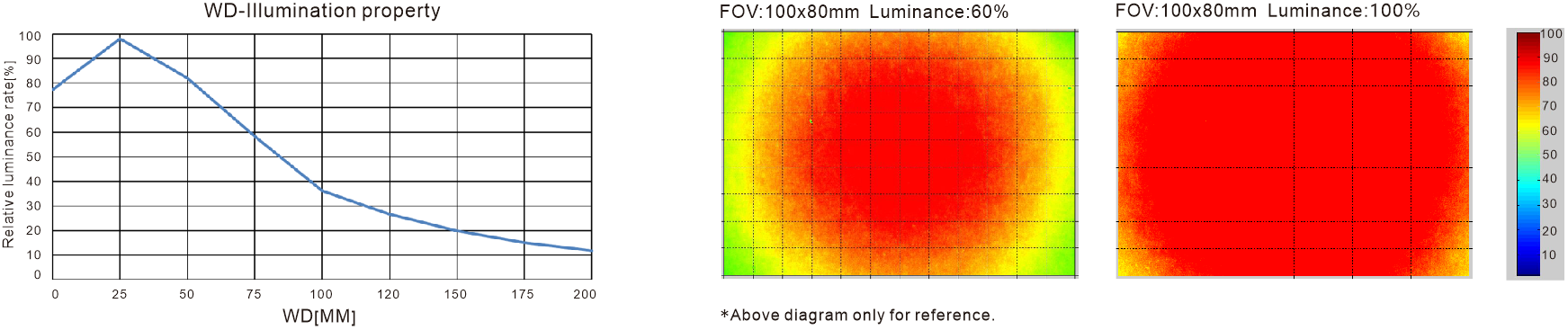

Optical Diagram & Model Naming Convention
Model Naming Convention
Vector Diagram
