Machine Vision Light
LXV-SFT

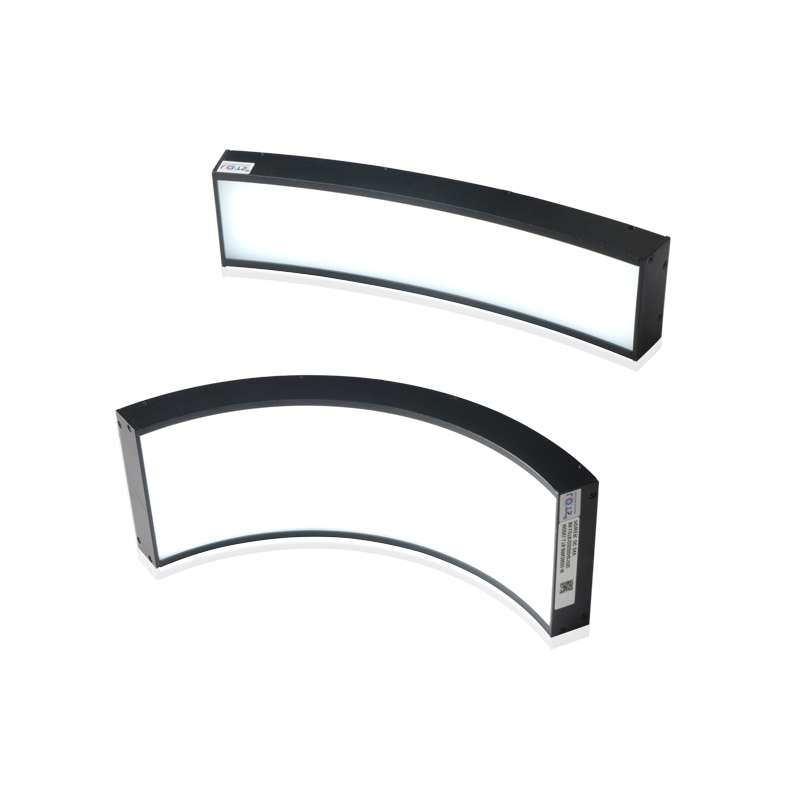

Arc-shaped Back Light
1.Semi-curvy shape design, used with high uniformity diffuser, to make the uniformity higher. 2.Are-shaped and dimensions can be customized.
Features
- •Semi-curvy shape design, used with high uniformity diffuser, to make the uniformity higher.
- •2.Are-shaped and dimensions can be customized.
Applications
- •Semi-curvy shaped bottle appearance inspection.
- •2.M etal edge location inspection.
- •3.Wafer particles inspection.
- •4.Scratch of mobile camera lens inspection.
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-SFT18072-90-R/GBW | Red / Blue / Green / White | Out dia. φ180,Inner Dia. φ140,Height 80mm | 24V | 8.7W/10.8W |
| LXV-SFT29075-100-R/GBW | Red / Blue / Green / White | Out dia. φ290,Inner Dia. φ250,Height 83mm | 24V | 20.2W/26.0W |
| LXV-SFT84042-28-R/GBW | Red / Blue / Green / White | Out dia. φ840,Inner Dia. φ796,Height 50mm | 24V | 15.4W/19.2W |
| LXV-SFT140142-180-R/GBW | Red / Blue / Green / White | Out dia. φ140,Inner Dia. φ100,Height 72mm | 24V | 24.0W/30.3W |
| LXV-SFT180112-120-R/GBW | Red / Blue / Green / White | Out dia. φ180,Inner Dia. φ140,Height 120mm | 24V | 17.3W/21.6W |
| LXV-SFT400150-105-R/GBW | Red / Blue / Green / White | Out dia. φ400,Inner Dia. φ360,Height 162mm | 24V | 46.1W/57.6W |
| LXV-SFT300100-55-W-PL | White | Out dia. φ300,Inner Dia. φ260,Height 112mm | 24V | 14W |
| * UV & IR light can be customized as required. | - | - | - | - |
OPTICAL DESIGN & NAMING

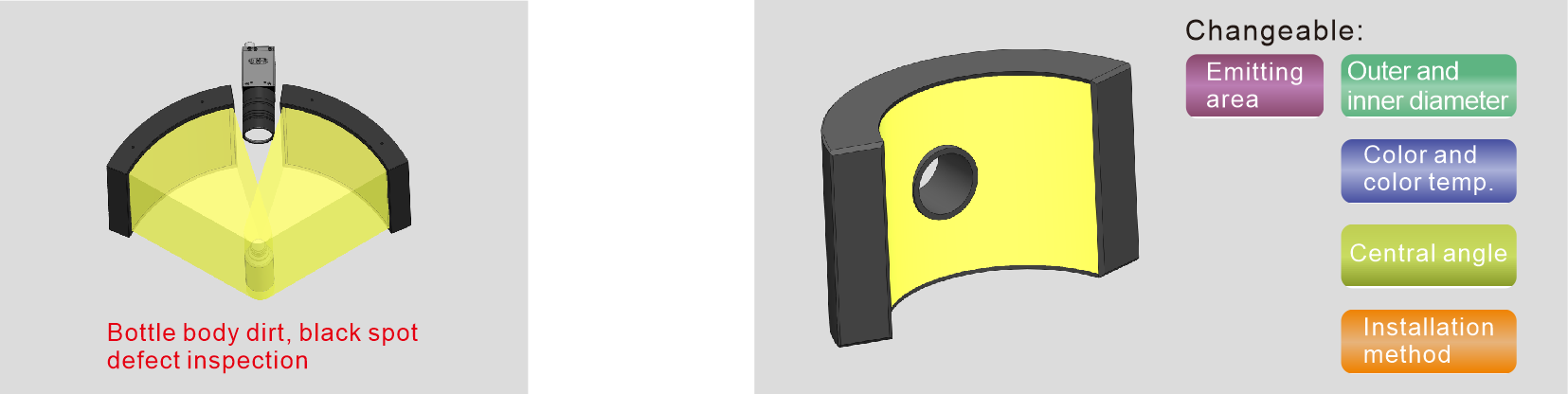

Optical Diagram & Model Naming Convention
Model Naming Convention
Vector Diagram
