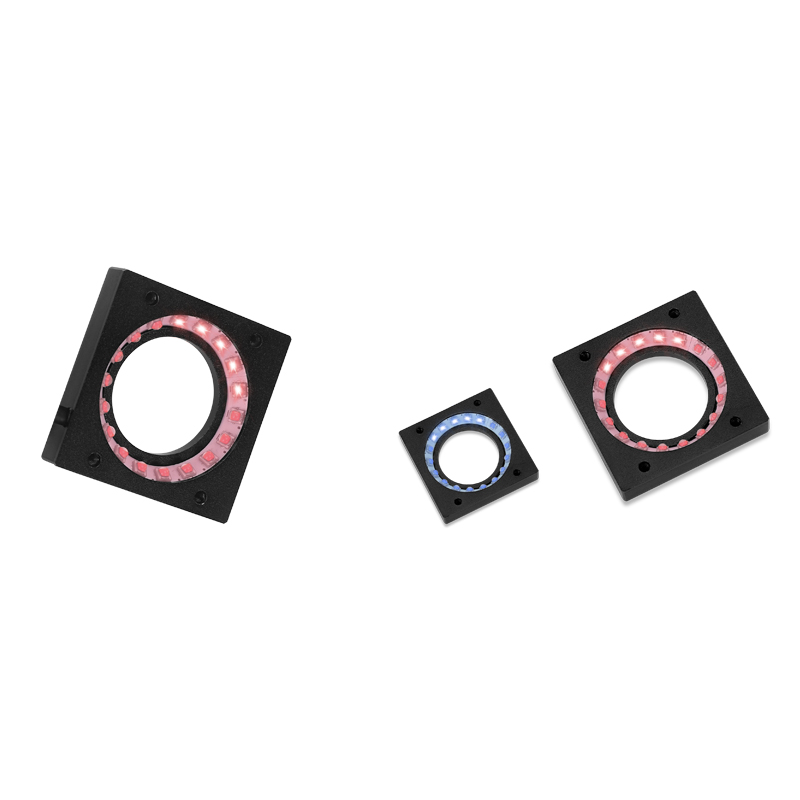

Machine Vision Light
LXV-SQR
Square Ring Light
1.Use high luminance LEDs, low angle emitting. 2.Suitable for IC chip characters or PCB characters inspection.
Features
- •Use high luminance LEDs, low angle emitting.
- •2.Suitable for IC chip characters or PCB characters inspection.
Applications
- •Character recognition
- •2.Inspection of appearance
- •3.Damage and dirt inspection
- •4.2D code reading
| Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|
| LXV-SQR2840-R/GBW | Red / Blue / Green / White | L28xW28xH4(mm) | 24V | 1.1W/1.1W |
| LXV-SQR3085-R/GBW | Red / Blue / Green / White | L30xW20xH12(mm) | 24V | 0.6W/0.6W |
| LXV-SQR3440-R/GBW | Red / Blue / Green / White | L34xW34xH6.5(mm) | 24V | 2.2W/2.2W |
| * UV & IR light can be customized as required. | - | - | - | - |

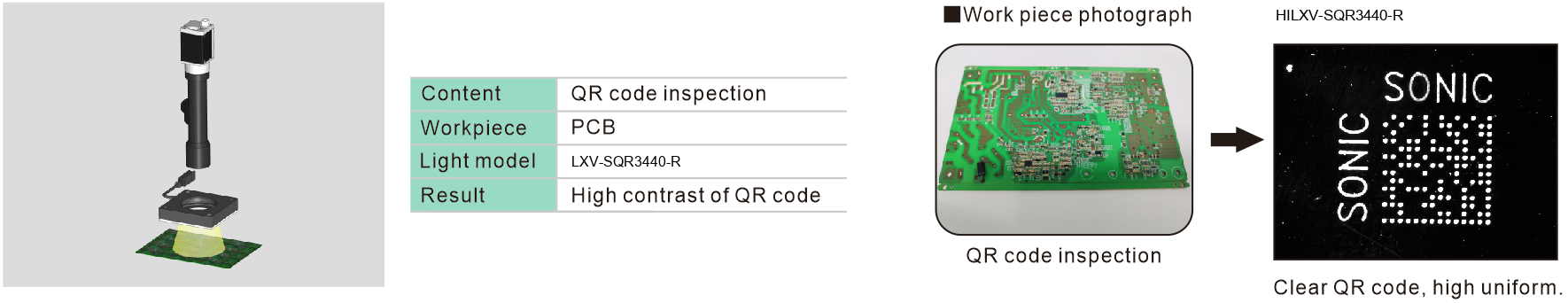

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-SQR.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
