Machine Vision Light
LXV-SRN
Arc-shaped Light

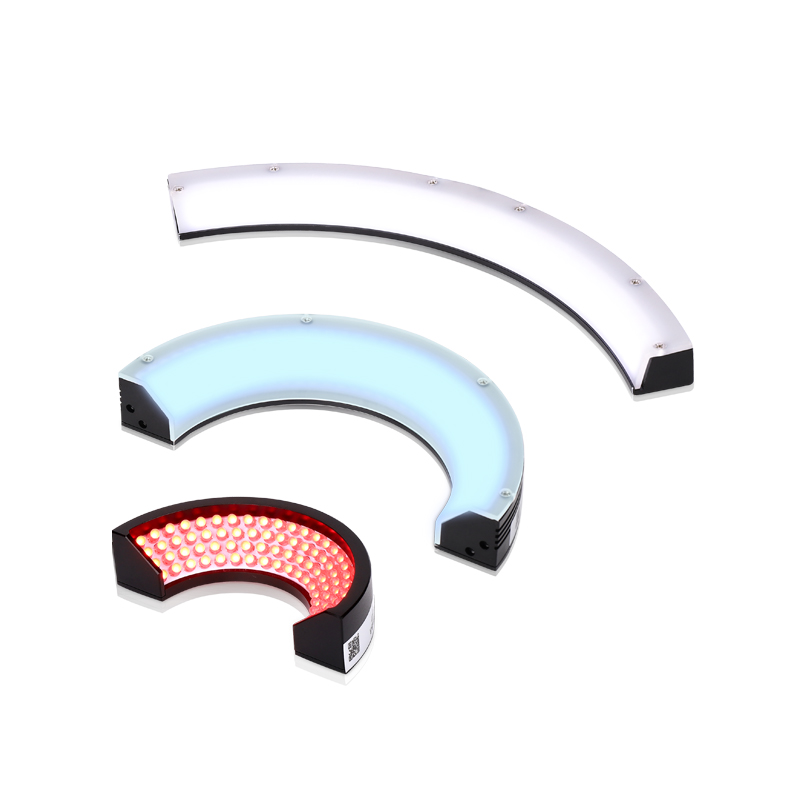

The half ring light adopts lamp LEDs to get high brightness. The shape is small and light, which is easier to install than the ordinary ring light. It can be used to inspect a variety of arc shaped objects and also can be combined with bar lights as runway lighting.
| Angle | Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|---|
| 0° | LXV-SRN6900-150-R/BGW | Red / Blue / Green / White | Out dia. φ68,Inner Dia. φ29,Height 33mm | 24V | 0.4W/0.8W |
| LXV-SRN10000-180-R/BGW | / | Out dia. φ100,Inner Dia. φ60,Height 10mm | 24V | 1.1W/1.1W | - |
| LXV-SRN12000-90-R/BGW | / | Out dia. φ120,Inner Dia. φ80,Height 38mm | 24V | 3.3W/4.4W | - |
| LXV-SRN17200-90-R/BGW | / | Out dia. φ172,Inner Dia. φ130,Height 16mm | 24V | 1.8W/2.2W | - |
| LXV-SRN20000-130-R/BGW | / | Out dia. φ200,Inner Dia. φ190,Height 50mm | 24V | 10.1W/13.0W | - |
| LXV-SRN24000-120-R/BGW | / | Out dia. φ240,Inner Dia. φ206,Height 13.5mm | 24V | 3.3W/4.4W | - |
| LXV-SRN28600-90-R/BGW | / | Out dia. φ286,Inner Dia. φ250,Height 16mm | 24V | 2.9W/3.6W | - |
| LXV-SRN30000-90-R/BGW | / | Out dia. φ300,Inner Dia. φ250,Height 19mm | 24V | 4.4W/5.4W | - |
| LXV-SRN35000-70-R/BGW | / | Out dia. φ350,Inner Dia. φ252,Height 20mm | 24V | 1.5W/1.8W | - |
| LXV-SRN50000-47-R/BGW | / | Out dia. φ500,Inner Dia. φ410,Height 20mm | 24V | 1.5W/1.8W | - |
| 30° | LXV-SRN5030-180-R/BGW | Red / Blue / Green / White | Out dia. φ50,Inner Dia. φ20,Height 20.5mm | 24V | 1.1W/1.1W |
| LXV-SRN7430-286-R/BGW | / | Out dia. φ74,Inner Dia. φ40,Height 20mm | 24V | 1.8W/2.2W | - |
| LXV-SRN9030-150-R/BGW | / | Out dia. φ90,Inner Dia. φ61,Height 17.5mm | 24V | 1.5W/1.8W | - |
| 45° | LXV-SRN7045-180-R/BGW | Red / Blue / Green / White | Out dia. φ70,Inner Dia. φ31,Height 21mm | 24V | 1.8W/2.2W |
| LXV-SRN9045-180-R/BGW | / | Out dia. φ90,Inner Dia. φ52,Height 20.5mm | 24V | 2.9W/3.6W | - |
| LXV-SRN12045-288-R/BGW | / | Out dia. φ120,Inner Dia. φ68,Height 32mm | 24V | 8.3W/10.5W | - |
| 60° | LXV-SRN9060-150-R/BGW | Red / Blue / Green / White | Out dia. φ90,Inner Dia. φ57,Height 20.5mm | 24V | 1.1W/1.5W |
| LXV-SRN12060-300-R/BGW | / | Out dia. φ120,Inner Dia. φ60,Height 25mm | 24V | 8.7W/9.8W | - |
| LXV-SRN15060-296-R/BGW | / | Out dia. φ150,Inner Dia. φ94,Height 24.5mm | 24V | 7.0W/8.7W | - |
| 90° | LXV-SRN6490-180-R/BGW | Red / Blue / Green / White | Out dia. φ64,Inner Dia. φ30,Height 20.5mm | 24V | 1.5W/1.8W |
| LXV-SRN35090-180-R/BGW | / | Out dia. φ350,Inner Dia. φ200,Height 24.5mm | 24V | 23.1W/28.8W | - |
| Special angle | LXV-SRN7010-180-R/BGW | Red / Blue / Green / White | Out dia. φ70,Inner Dia. φ40,Height 21mm | 24V | 1.1W/1.1W |
| LXV-SRN9120-90-R/BGW | / | Out dia. φ91,Inner Dia. φ40,Height 33mm | 24V | 1.8W/2.2W | - |
| LXV-SRN17315-180-R/BGW | / | Out dia. φ173,Inner Dia. φ133,Height 27mm | 24V | 2.2W/2.9W | - |
| LXV-SRN29015-90-R/BGW | / | Out dia. φ290,Inner Dia. φ250,Height 16mm | 24V | 1.5W/1.8W | - |
| LXV-SRNH9045-180-BGW | - | Out dia. φ90,Inner Dia. φ50,Height 21mm | 24V | 8.6W | - |
| * UV & IR light can be customized as required. | - | - | - | - | - |
IMAGING COMPARISON
Application Effect Analysis

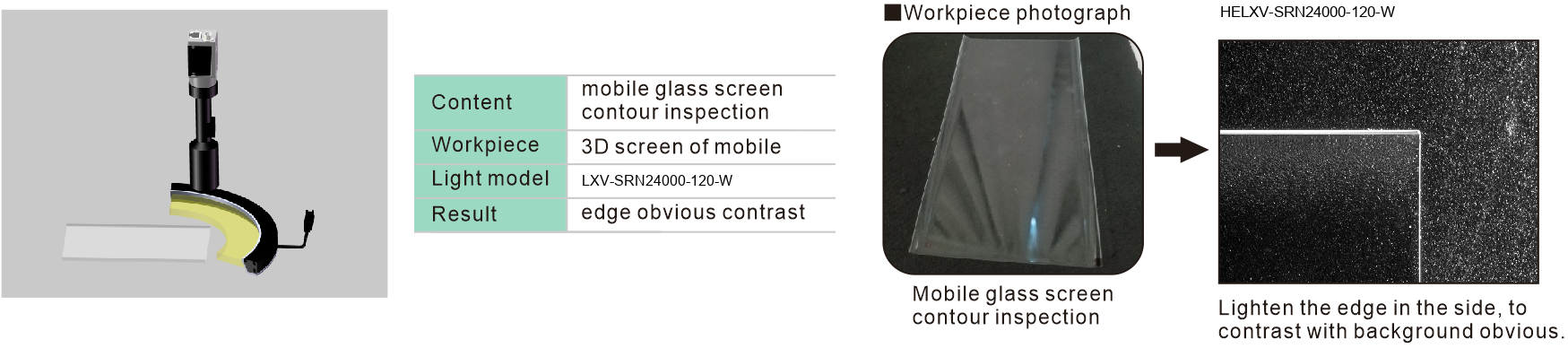

Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-SRN.
OPTICAL DESIGN & NAMING

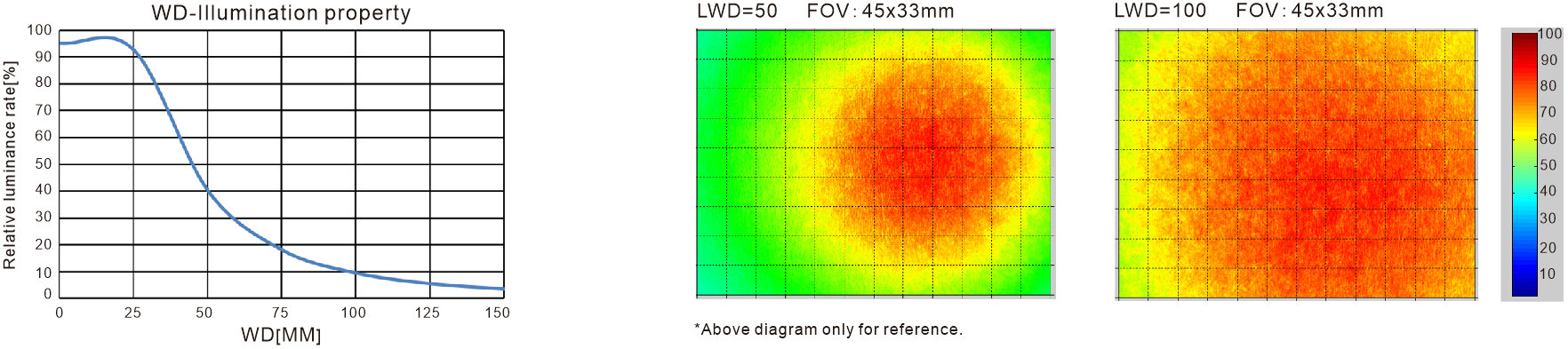

Optical Diagram & Model Naming Convention

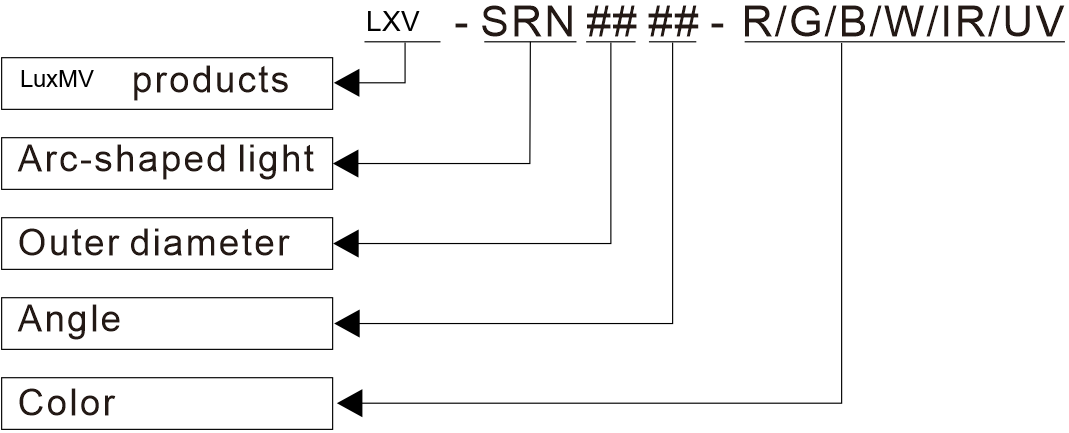

Model Naming Convention
Vector Diagram
