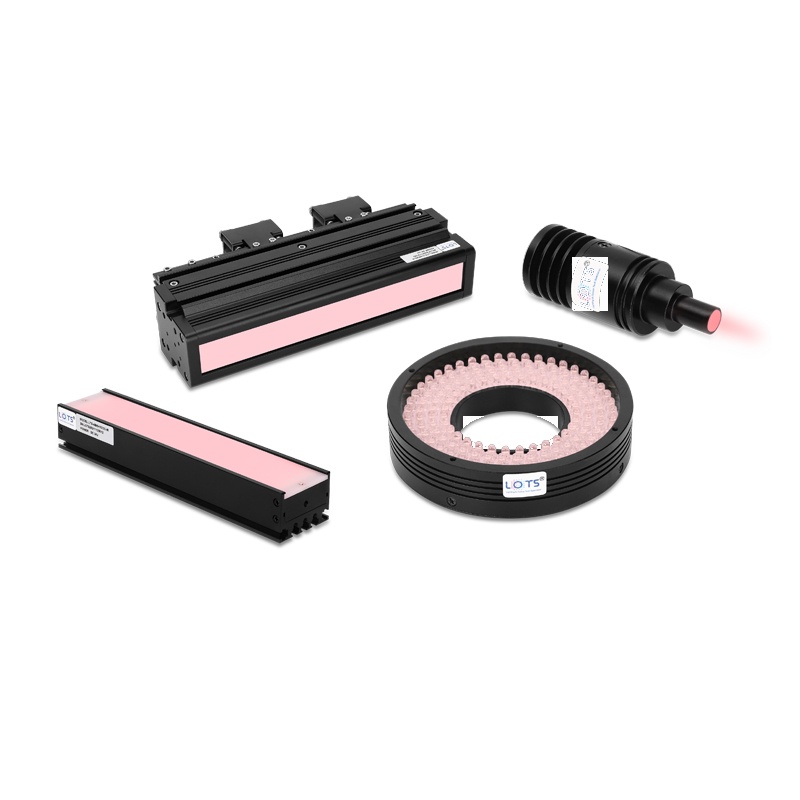

Machine Vision Light
LXV-SWIR
Short Wavelength Infrared Light
1.Shortwave infrared, which is more penetrating, seven wavelengths available. 2.1050nm/ 1200nm/1300nm/1450nm/1550nm/1600nm/1650nm. 3.Matched with SWIR camera.
Features
- •Shortwave infrared, which is more penetrating, seven wavelengths available.
- •2.1050nm/ 1200nm/1300nm/1450nm/1550nm/1600nm/1650nm.
- •3.Matched with SWIR camera.
Applications
- •Electronic panel inspection.
- •2.Solar cell inspection.
- •3.Production inspection identification and sequencing.
- •4.Food packaging inspection, medical inspection.
| Model | Color | Dimension | Voltage/current | Power |
|---|---|---|---|---|
| LXV-RN7090 | SWIR | Outer dia. φ70mm,Inner dia. φ36mm,Height 20.5mm | 24V | 2.2W |
| LXV-RN9090 | SWIR | Outer dia. φ90mm,Inner dia. φ40mm,Height 20mm | 24V | 3.6W |
| LXV-3SL083 | SWIR | Outer dia. φ59.2mm,Inner dia. φ8mm,Height 22mm | 700mA | 2.2W |
| LXV-2LINS380 | SWIR | L380xW53xH121.5(mm) | 24V | 90W |
| LXV-2LINS500 | SWIR | L500xW53xH121.5(mm) | 24V | 108W |
| LXV-4BR9016 | SWIR | L102xW22xH26(mm) | 24V | 1.5W |
| LXV-4BRH15016 | SWIR | L162xW22xH36(mm) | 24V | 8.4W |
| LXV-4BRH15030 | SWIR | L162xW36xH46(mm) | 24V | 14.4W |
| LXV-3FT100100 | SWIR | L117xW117xH23(mm) | 24V | 6.5W |
| * UV & IR light can be customized as required. | - | - | - | - |

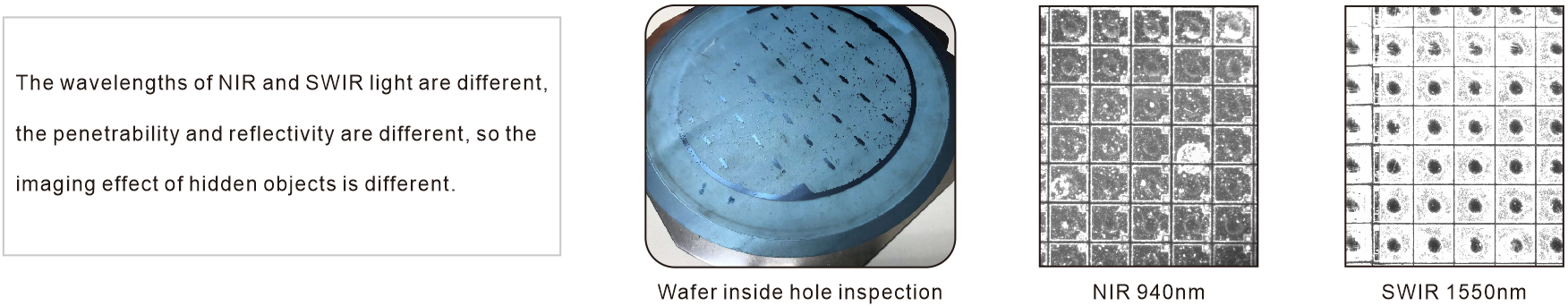

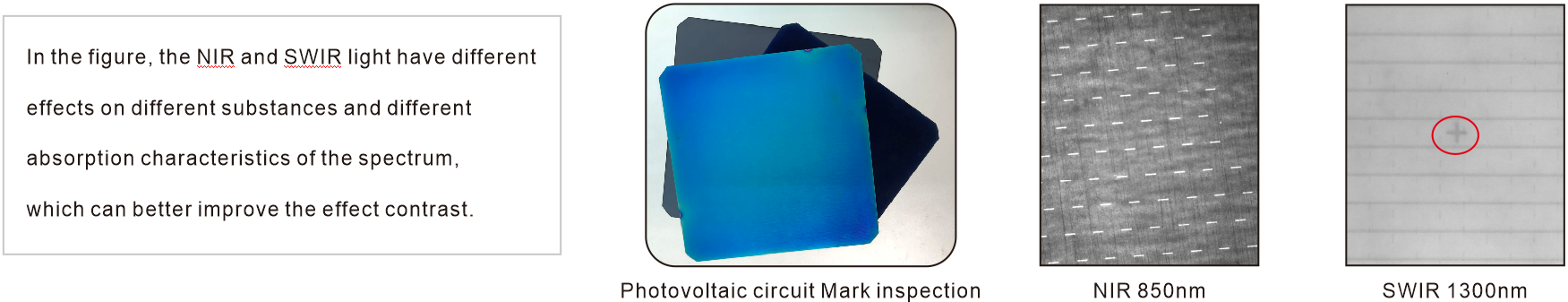

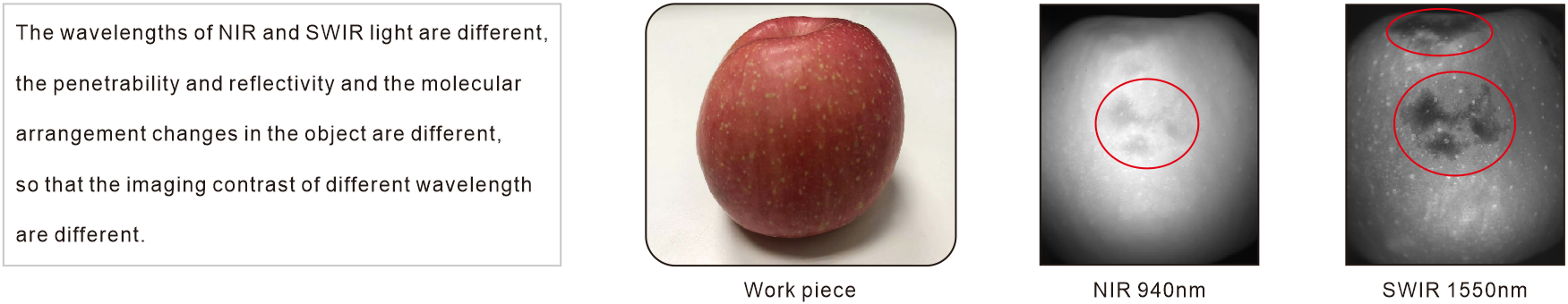

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-SWIR.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
Get a Customized Quotation
Need specific dimensions, custom wavelength LED combinations, or special cabling? Our optical engineering and sales offices are ready to assist.
Sales Email: info@luxmv.com
Response SLA: Under 4 Hours (Business Days)
Free Optical Simulation
Send us your target workpiece samples. We will test them in our R&D lighting darkrooms and supply a selection report completely free.
