Machine Vision Light
LXV-UV

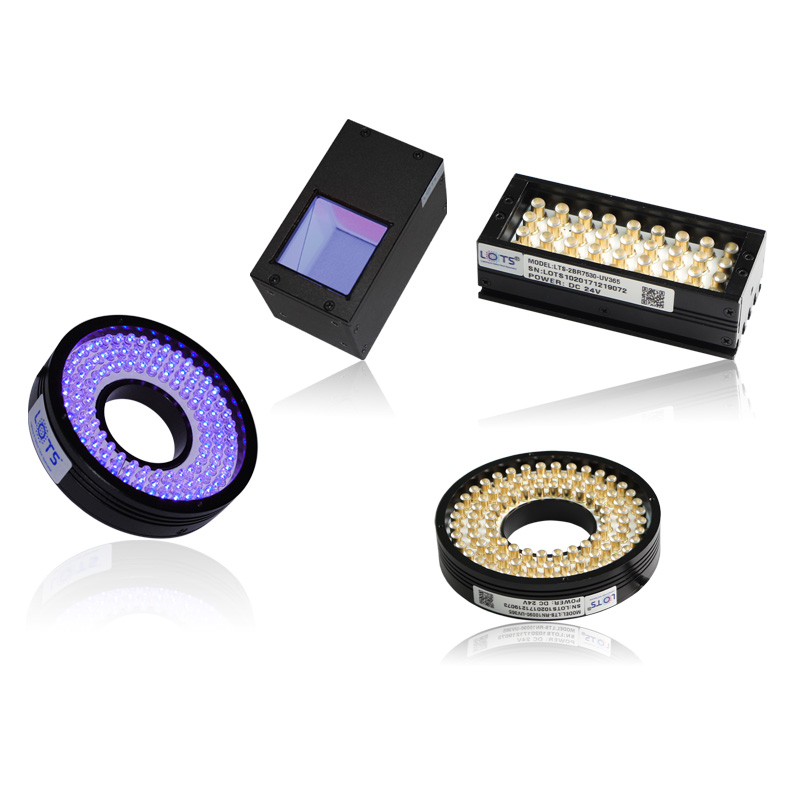

Ultraviolet Light
The Ultraviolet light consists of particles or chip LED arrays. The 365-410nm wavelength is available. The shape and illumination angle can be customized at the same time. For example, ring light, bar light, bottom back light， shadowless dome light.
Features
- •Wavelength optional: 365-405nm.
- •2.Use for high precision applications.
Applications
- •Metal surface tiny scratch inspection.
- •2.Fake currency inspection.
- •3.UV curing printed ink.
- •4.Cigarette case anti-fake inspection.
| Product | Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|---|
| Ring ultraviolet light | LXV-RN5060-UV | UV (Ultraviolet) | Out dia. φ50,Inner Dia. φ28.5,Height 19.5mm | 24V | 2.0W |
| LXV-RN7090-UV | - | Out dia. φ70,Inner Dia. φ36,Height 20.5mm | 24V | 3.6W | - |
| LXV-RN12030-UV | - | Out dia. φ120,Inner Dia. φ80,Height 23mm | 24V | 7.2W | - |
| Coaxial ultraviolet light | LXV-3COX40-UV | UV (Ultraviolet) | L74xW50xH50(mm) | 24V | 1.7W |
| LXV-3COX50-IR | - | L84xW60xH60(mm) | 24V | 3.6W | - |
| Back ultraviolet light | LXV-4FT5050-UV | UV (Ultraviolet) | L64xW64xH17(mm) | 24V | 3.6W |
| LXV-4FT7070-UV | - | L84xW84xH17(mm) | 24V | 5.8W | - |
| LXV-4FT8080-UV | - | L94xW94xH17(mm) | 24V | 7.2W | - |
| LXV-4FT100100-UV | - | L114xW114xH17(mm) | 24V | 11.6W | - |
| LXV-4FT150150-UV | - | L164xW164xH17(mm) | 24V | 19.2W | - |
| Bar ultraviolet light | LXV-4BR6016-UV | UV (Ultraviolet) | L72xW22xH26(mm) | 24V | 1.5W |
| LXV-4BR9016-UV | - | L102xW22xH26(mm) | 24V | 2.2W | - |
| LXV-4BR18016-UV | - | L192xW22xH26(mm) | 24V | 5.1W | - |
| LXV-4BR7530-UV | - | L87xW36xH26(mm) | 24V | 3.6W | - |
| LXV-4BR12530-UV | - | L137xW36xH26(mm) | 24V | 6.0W | - |
| * UV & IR light can be customized as required. | - | - | - | - | - |

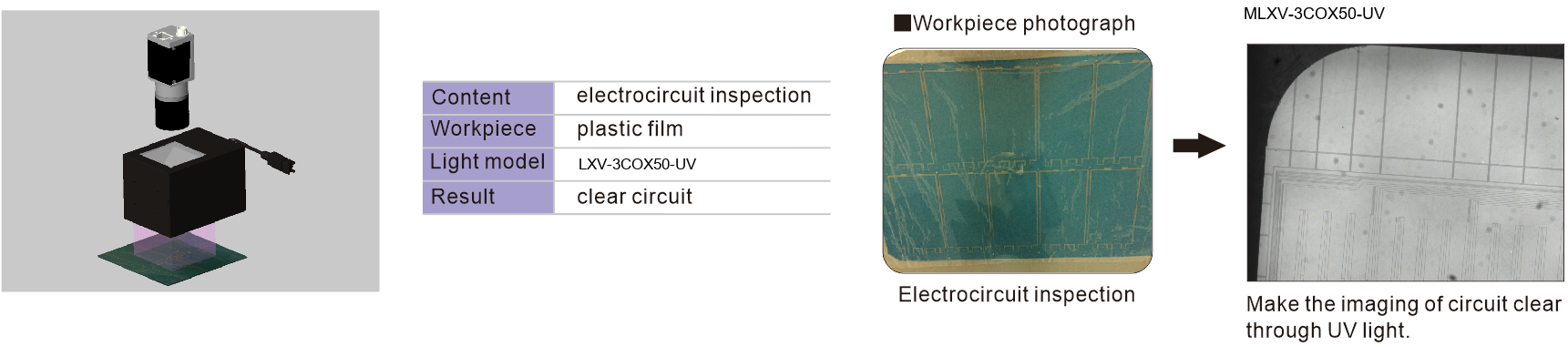

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-UV.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
