| Product | Model | Color | Dimension | Voltage | Power |
|---|---|---|---|---|---|
| Ring infrared light | LXV-RN5060-NIR | IR (Infrared) | Out dia. φ50,Inner Dia. φ28.5,Height 19.5mm | 24V | 1.2W |
| LXV-RN7090-NIR | - | Out dia. φ70,Inner Dia. φ36,Height 20.5mm | 24V | 2.6W | - |
| LXV-RN12030-NIR | - | Out dia. φ120,Inner Dia. φ80,Height 23mm | 24V | 4.4W | - |
| Coaxial infrared light | LXV-3COX40-NIR | IR (Infrared) | L74xW50xH50(mm) | 24V | 1.5W |
| LXV-3COX50-NIR | - | L84xW60xH60(mm) | 24V | 2.4W | - |
| Back infrared light | LXV-4FT5050-NIR | IR (Infrared) | L64xW64xH17(mm) | 24V | 2.4W |
| LXV-4FT7070-NIR | - | L84xW84xH17(mm) | 24V | 3.9W | - |
| LXV-4FT8080-NIR | - | L94xW94xH17(mm) | 24V | 4.4W | - |
| LXV-4FT100100-NIR | - | L114xW114xH17(mm) | 24V | 7.7W | - |
| LXV-4FT150150-NIR | - | L164xW164xH17(mm) | 24V | 11.6W | - |
| Bar infrared light | LXV-4BR6016-NIR | IR (Infrared) | L72xW22xH26(mm) | 24V | 1.0W |
| LXV-4BR9016-NIR | - | L102xW22xH26(mm) | 24V | 1.5W | - |
| LXV-4BR18016-NIR | - | L192xW22xH26(mm) | 24V | 2.9W | - |
| LXV-4BR7530-NIR | - | L87xW36xH26(mm) | 24V | 2.2W | - |
| LXV-4BR12530-NIR | - | L137xW36xH26(mm) | 24V | 3.6W | - |
| * UV & NIR light can be customized as required. | - | - | - | - | - |

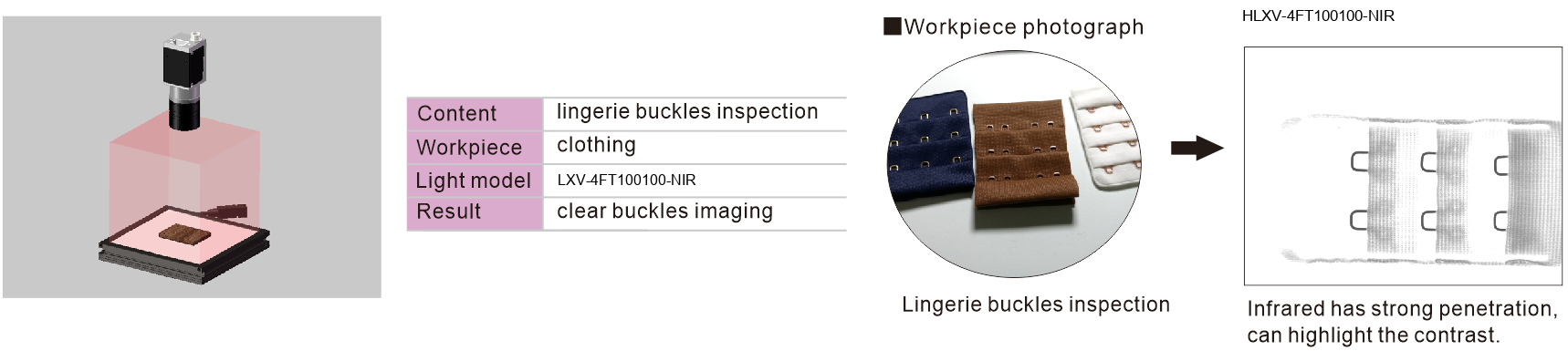

IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of LXV-NIR.
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
Get a Customized Quotation
Need specific dimensions, custom wavelength LED combinations, or special cabling? Our optical engineering and sales offices are ready to assist.
Sales Email: info@luxmv.com
Response SLA: Under 4 Hours (Business Days)
Free Optical Simulation
Send us your target workpiece samples. We will test them in our R&D lighting darkrooms and supply a selection report completely free.
