Compact 5 MP imaging for 2/3-inch sensors and short working distances
This six-model fixed-focal family combines 8–50 mm focal lengths, C mount, low distortion and 2/3-inch sensor coverage for compact machine-vision inspection.
- Resolution
- 5 MP
- Family specification
- Sensor format
- 2/3 inch
- All rows
- Focal lengths
- 8–50 mm
- Six models
- Working distance
- 100 mm–infinity
- Model-dependent
- Mount
- C
- All rows
- 5 MP high resolution
- Low-distortion optical design
- High light throughput
- Short-working-distance design
- Compact structure
- Positioning and inspection use
- Cost-effective fixed-focal family
- Automatic optical inspection in the electronics industry
- Semiconductor package inspection
- Code reading and recognition
- Printing inspection
- Location and positioning systems
- AOI inspection
Optical performance and model-specific limits

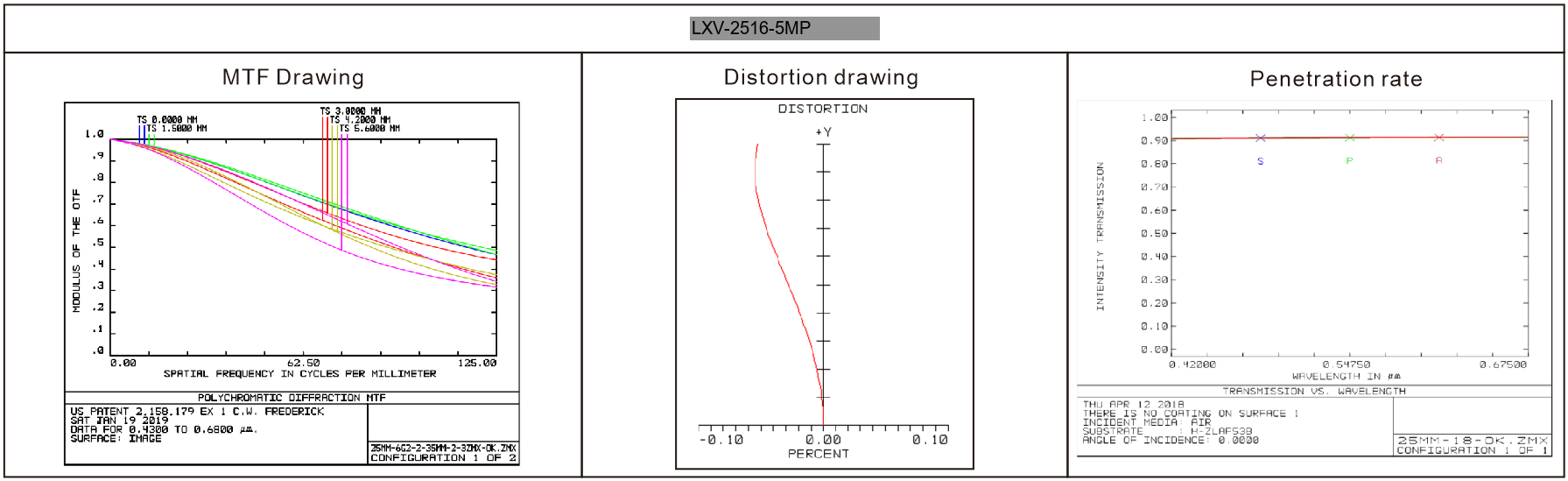

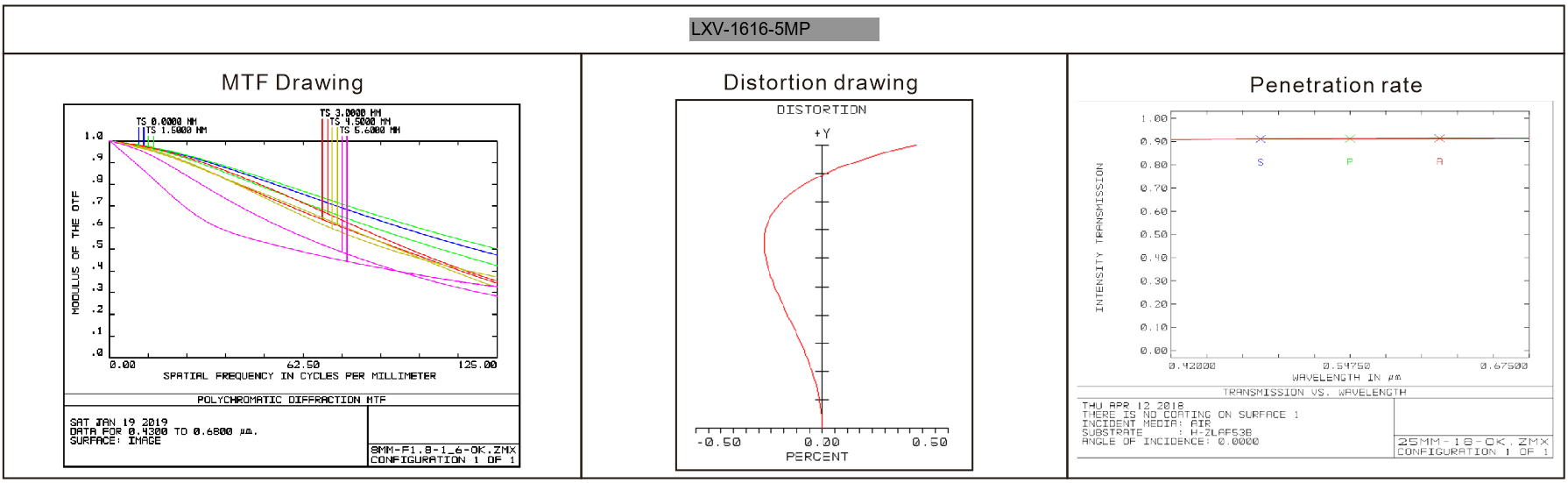

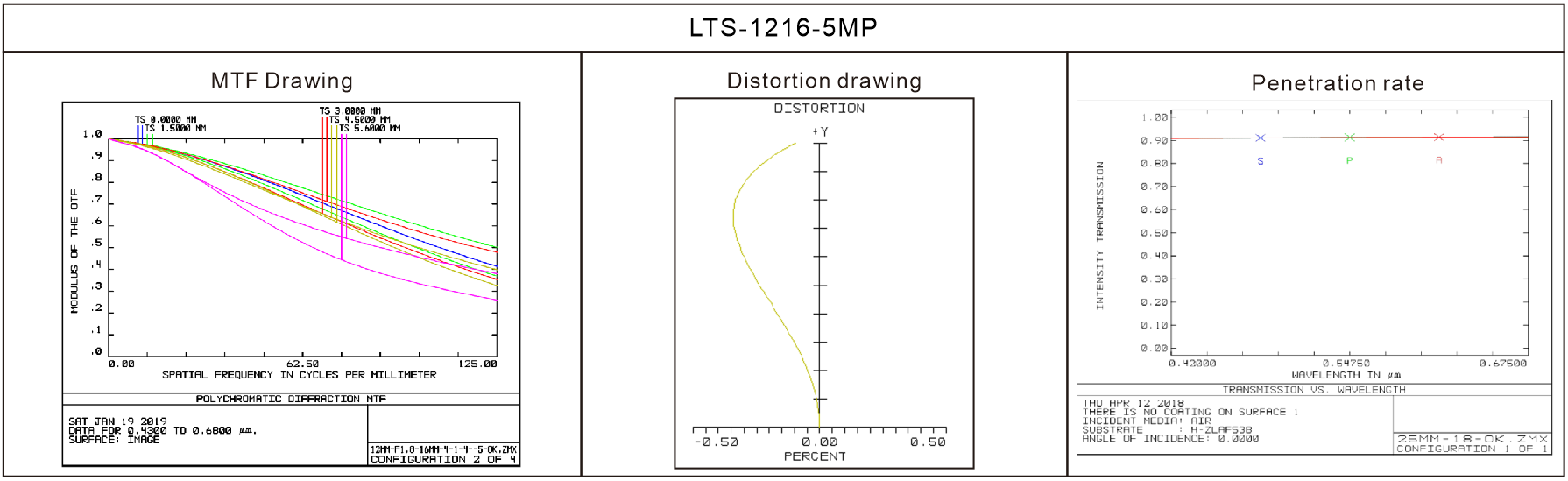

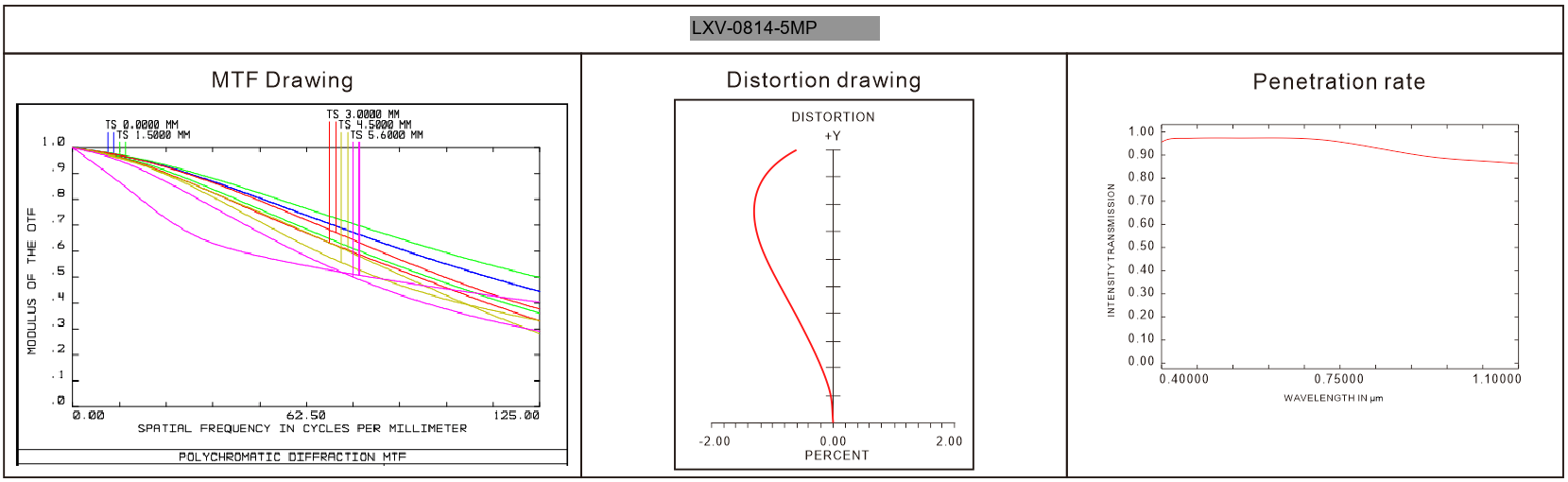

Use the numerical model limits together with MTF, field-curvature, distortion and transmission plots to evaluate image quality across the required field.
Select focal length without transferring values between rows
Start with the sensor and required field of view, then compare optical and mechanical constraints within one complete model row.
LXV-08-14-5MP- LXV
- Product prefix
- 08
- Focal length
- 14
- Aperture code
- 5MP
- Five-million-pixel resolution
- 1
Define sensor and required field
Record sensor format, pixel size, inspection width and smallest feature.
- 2
Choose the optical geometry
Compare focal length or magnification with the listed working distance.
- 3
Check image quality limits
Review distortion, relative illumination, aperture and the retained performance plots.
- 4
Release one complete row
Keep mount, filter, body and optical values associated with the chosen model.
| Model | Focal length | Aperture F/# | WD range | Distortion | Relative illumination | Filter | Sensor | Mount |
|---|---|---|---|---|---|---|---|---|
| LXV-0814-5MP (New) | 8 mm | 1.4–16 | 100–1500 mm | <0.3% | >70% | M37×P0.5 | 2/3 inch | C |
| LXV-1216-5MP | 12 mm | 1.6–16 | 100–1500 mm | <0.15% | >70% | M35.5×P0.5 | 2/3 inch | C |
| LXV-1616-5MP | 16 mm | 1.6–16 | 100–1500 mm | <0.1% | >70% | M30.5×P0.5 | 2/3 inch | C |
| LXV-2516-5MP | 25 mm | 1.6–16 | 100–1500 mm | <0.1% | >76% | M30.5×P0.5 | 2/3 inch | C |
| LXV-3516-5MP | 35 mm | 1.6–16 | 150–1500 mm | <0.15% | >76% | M30.5×P0.5 | 2/3 inch | C |
| LXV-5020-5MP | 50 mm | 2–16 | 300 mm–infinity | <0.05% | >76% | M30.5×P0.5 | 2/3 inch | C |
Confirm C-mount, sensor coverage and working-distance envelope
A separate mechanical outline is not available for this family. Integration should therefore use the selected row’s C mount, filter thread, sensor format and working-distance limits, with final body clearance confirmed before release.
Camera interface
Use a C-mount camera and confirm 2/3-inch sensor coverage.
Object geometry
Calculate the required field of view at the intended working distance before selecting focal length.
Front accessories
Match the selected model’s M37, M35.5 or M30.5 filter thread.
Machine envelope
Confirm focus travel, body clearance and cable access on the real camera-lens assembly.
