Large-image-circle optics for 8K line-scan inspection
Seven lens models cover 35–90 mm focal lengths, multiple magnification ranges and up to Ø82 mm target-surface entries for 8K line-scan cameras.
- Camera class
- 8K line scan
- 5 μm / 7 μm pixels
- Image plane
- up to Ø62 mm
- Family characteristic
- Focal lengths
- 35–90 mm
- Seven rows
- Magnification
- 0.01×–3×
- Family range
- Mounts
- M42 / M58 / M72 / M90
- Model-dependent
- Large image sensor coverage up to a Ø62 mm image plane
- Supports 8K line-scan cameras with 5 μm or 7 μm pixels
- Stable and flexible V-mount design
- Multiple models covering 0.01×–3× family magnification
- Printing inspection
- Glass cover-plate inspection
- AOI
- Photovoltaic inspection
Optical performance and model-specific limits

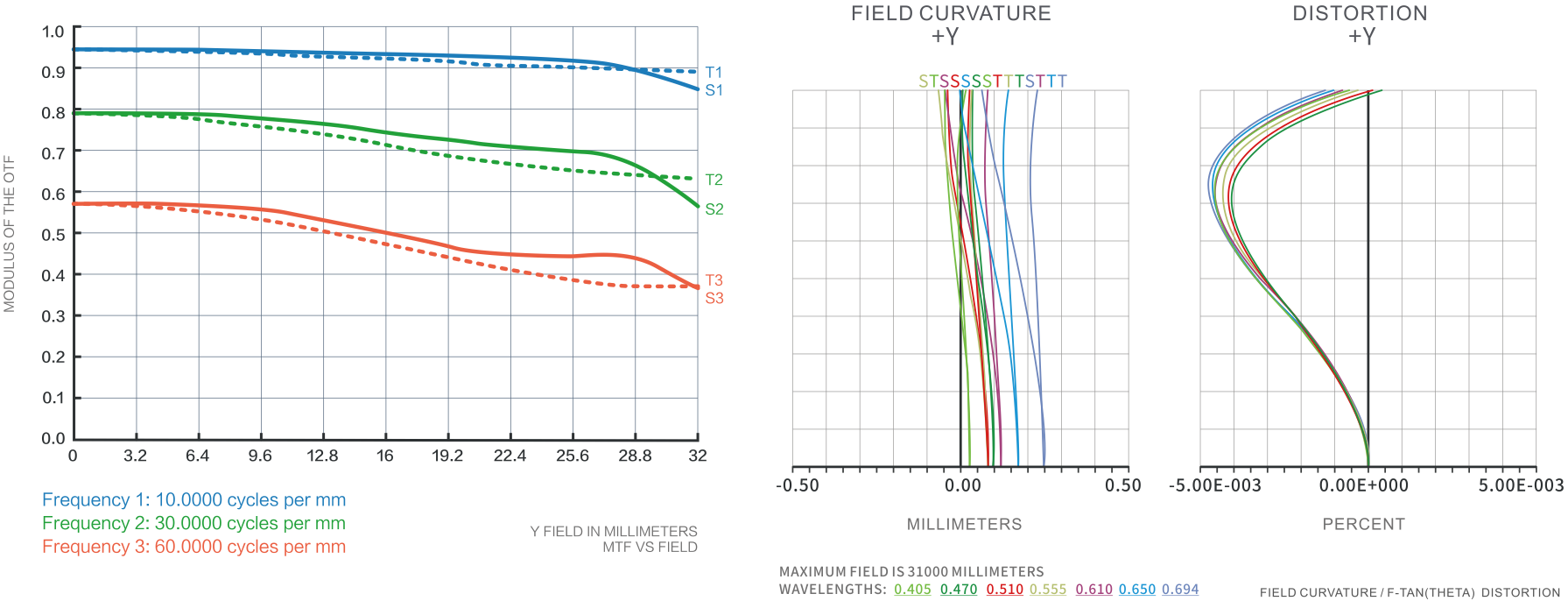

Use the numerical model limits together with MTF, field-curvature, distortion and transmission plots to evaluate image quality across the required field.
Select image coverage, magnification range and mount as one row
Start with the sensor and required field of view, then compare optical and mechanical constraints within one complete model row.

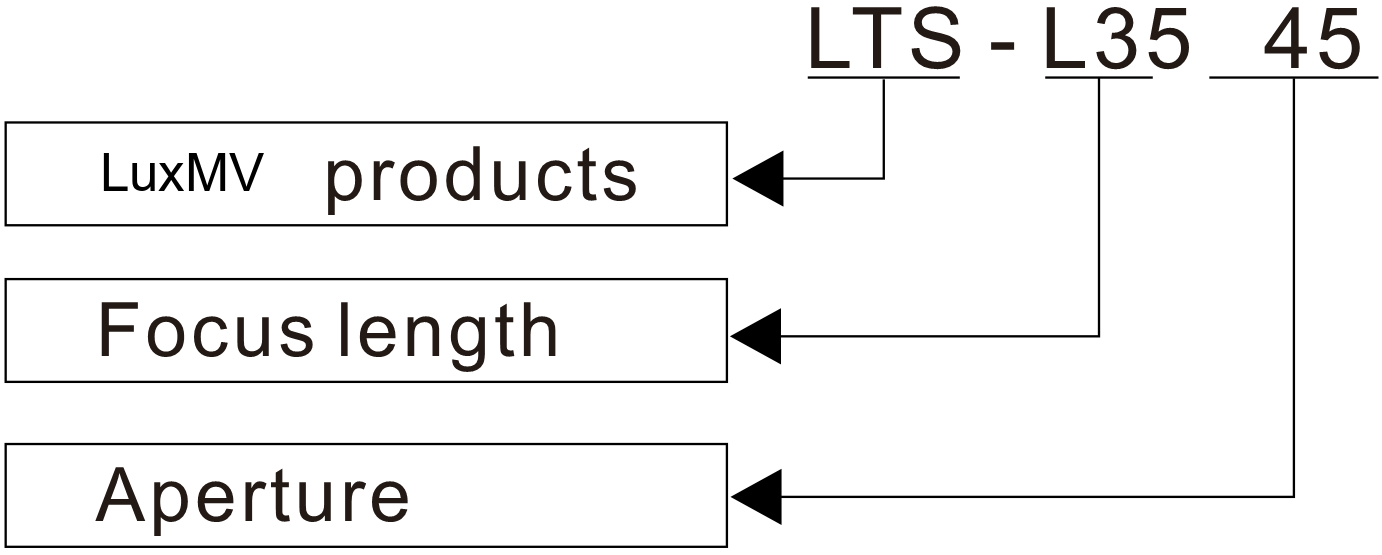

LXV-L35-45- LXV
- Product prefix
- L35
- Focal-length family
- 45
- Aperture code
- 1
Define sensor and required field
Record sensor format, pixel size, inspection width and smallest feature.
- 2
Choose the optical geometry
Compare focal length or magnification with the listed working distance.
- 3
Check image quality limits
Review distortion, relative illumination, aperture and the retained performance plots.
- 4
Release one complete row
Keep mount, filter, body and optical values associated with the chosen model.

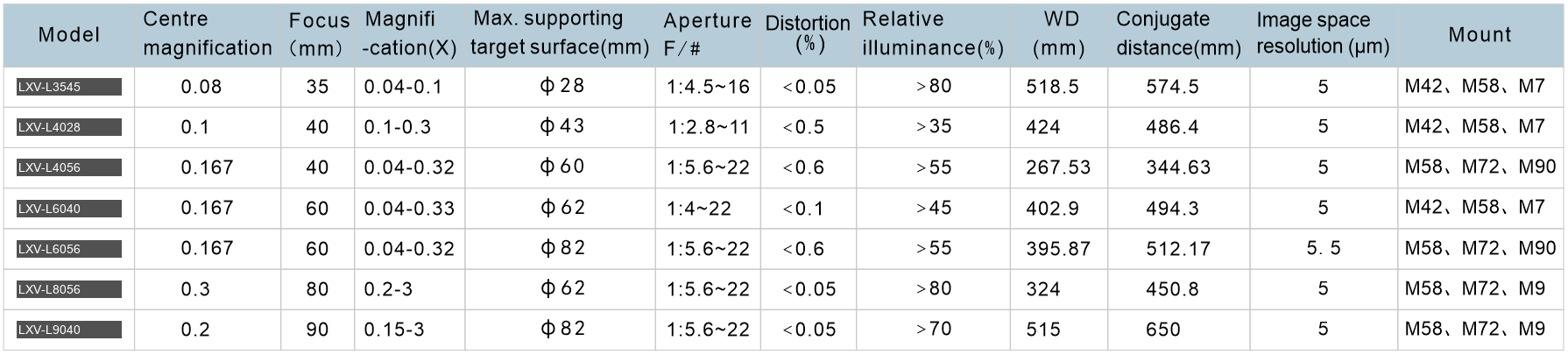

| Model | Center magnification | Focal length | Magnification range | Max target surface | Aperture | Distortion | Relative illumination | WD | Conjugate distance | Image resolution | Mount |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LXV-L3545 | 0.08× | 35 mm | 0.04–0.1× | Ø28 mm | 1:4.5–16 | <0.05% | >80% | 518.5 mm | 574.5 mm | 5 μm | M42, M58, M72 |
| LXV-L4028 | 0.1× | 40 mm | 0.1–0.3× | Ø43 mm | 1:2.8–11 | <0.5% | >35% | 424 mm | 486.4 mm | 5 μm | M42, M58, M72 |
| LXV-L4056 | 0.167× | 40 mm | 0.04–0.32× | Ø60 mm | 1:5.6–22 | <0.6% | >55% | 267.53 mm | 344.63 mm | 5 μm | M58, M72, M90 |
| LXV-L6040 | 0.167× | 60 mm | 0.04–0.33× | Ø62 mm | 1:4–22 | <0.1% | >45% | 402.9 mm | 494.3 mm | 5 μm | M42, M58, M72 |
| LXV-L6056 | 0.167× | 60 mm | 0.04–0.32× | Ø82 mm | 1:5.6–22 | <0.6% | >55% | 395.87 mm | 512.17 mm | 5.5 μm | M58, M72, M90 |
| LXV-L8056 | 0.3× | 80 mm | 0.2–3× | Ø62 mm | 1:5.6–22 | <0.05% | >80% | 324 mm | 450.8 mm | 5 μm | M58, M72, M90 |
| LXV-L9040 | 0.2× | 90 mm | 0.15–3× | Ø82 mm | 1:5.6–22 | <0.05% | >70% | 515 mm | 650 mm | 5 μm | M58, M72, M90 |
Match the large-format camera mount and optical distances
Mount options, working distance and conjugate distance vary materially by model. Use one complete row and confirm the final V-mount adapter and machine envelope with the selected line-scan camera.
Sensor and pixels
Confirm image-circle coverage and 5 μm or 7 μm sampling for the chosen 8K camera.
Magnification
Keep the required operating point inside the selected model’s listed range.
Optical distance
Plan around both working distance and conjugate distance from the same row.
Mount
Choose only the listed M42, M58, M72 or M90 interface for the selected model.
