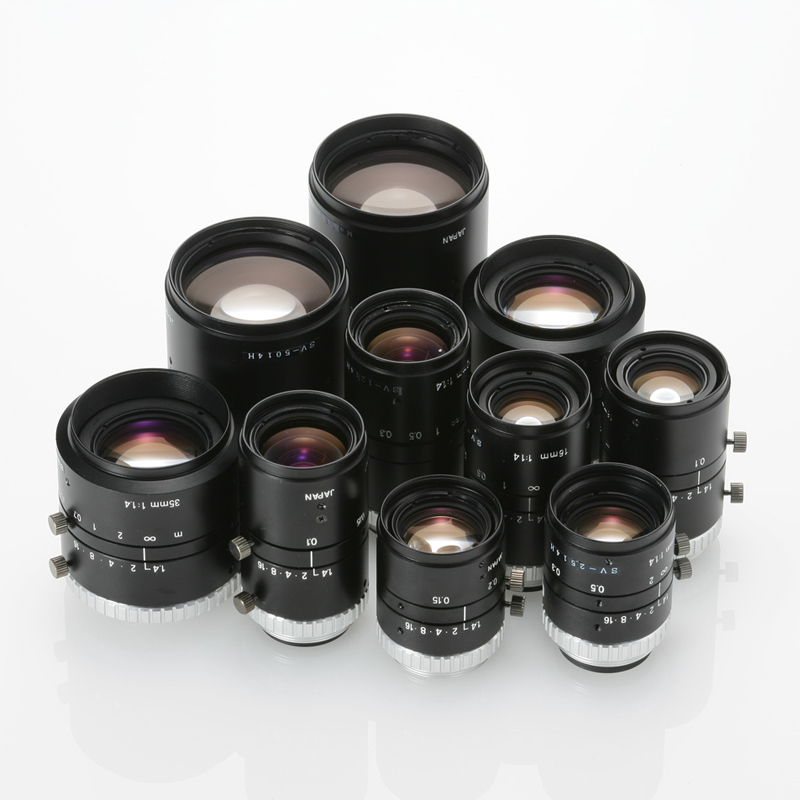

Bright adjustable optics for 2/3- and 1-inch cameras
Thirteen C-mount entries cover 6–100 mm focal lengths, bright F/1.4 options, adjustable focus and iris, with floating-element variants for selected 12 mm and 16 mm models.
- Models
- 13
- Two product-table groups
- Focal lengths
- 6–100 mm
- Family range
- Sensor coverage
- 2/3–1 inch
- Model-dependent
- Bright options
- F/1.4
- Selected models
- Floating variants
- SV-1214HF / SV-1614HF
- Marked models
- High-resolution design
- Bright aperture for lower-light scenes
- Adjustable iris and focus
- Broad working-distance coverage
- Floating-element variants on selected models
- General machine-vision inspection
- Lower-light area-camera imaging
- Electronics and component inspection
- Longer-focal-length inspection with 1-inch sensors
Optical performance and model-specific limits
Use the numerical model limits together with MTF, field-curvature, distortion and transmission plots to evaluate image quality across the required field.
The model table contains this family’s available technical record
Focal length, aperture, working distance, distortion, illumination, filter and mount data are listed by model. A separate optical-performance or mechanical plot is not available for this family.
Choose focal length, sensor and floating architecture together
Start with the sensor and required field of view, then compare optical and mechanical constraints within one complete model row.
SV-1214HF- SV
- VST lens prefix
- 12
- 12 mm focal length
- 14
- F/1.4 class
- HF
- SV-H floating variant
- 1
Define sensor and required field
Record sensor format, pixel size, inspection width and smallest feature.
- 2
Choose the optical geometry
Compare focal length or magnification with the listed working distance.
- 3
Check image quality limits
Review distortion, relative illumination, aperture and the retained performance plots.
- 4
Release one complete row
Keep mount, filter, body and optical values associated with the chosen model.
| Model | Focal length | F/# | Minimum object distance | Angle of view V×H | Mount | Max sensor | Floating |
|---|---|---|---|---|---|---|---|
| SV-0614H | 6 mm | 1.4–16 | 100 mm | 60.3°×69.0° | C mount | 2/3 inch | No |
| SV-0814H | 8 mm | 1.4–16 | 100 mm | 47.9°×55.4° | C mount | 2/3 inch | No |
| SV-1214HF | 12 mm | 1.4–16 | 100 mm | 33.4°×39.1° | C mount | 2/3 inch | Yes |
| SV-1614HF | 16 mm | 1.4–16 | 100 mm | 24.5°×28.9° | C mount | 2/3 inch | Yes |
| SV-2514H | 25 mm | 1.4–16 | 150 mm | 15.0°×20.0° | C mount | 2/3 inch | No |
| SV-3514H | 35 mm | 1.4–16 | 200 mm | 11.6°×13.7° | C mount | 2/3 inch | No |
| SV-5014H | 50 mm | 1.4–16 | 300 mm | 8.1°×9.6° | C mount | 2/3 inch | No |
| SV-7525H | 75 mm | 2.5–close | 1200 mm | 8.6°×8.6° | C mount | 1 inch | No |
| SV-10028H | 100 mm | 2.5–close | 2000 mm | 6.6°×6.6° | C mount | 1 inch | No |
| SV-0914H | 9 mm | 1.4–close | 100 mm | 43.4°×51.0° | C mount | 2/3 inch | No |
| SV-1214H | 12 mm | 1.4–16 | 100 mm | 32.4°×37.9° | C mount | 2/3 inch | No |
| SV-1614H | 16 mm | 1.4–16 | 100 mm | 33.4°×39.1° | C mount | 2/3 inch | No |
| SV-5026H | 50 mm | 2.6–close | 500 mm | 8.1°×9.6° | C mount | 2/3 inch | No |
Validate minimum distance, bright-aperture exposure and focus access
The family spans compact 2/3-inch models and 75–100 mm entries for 1-inch sensors. Select one complete row and confirm its focus range, floating architecture and exact body outline.
Sensor
Use the 1-inch models only where the selected row supports that format.
Floating option
Keep HF and non-HF models distinct when specifying focus behavior.
Exposure
Validate the bright aperture against depth of field and illumination.
Mechanical fit
Confirm the exact outline and C-mount engagement for the chosen focal length.
