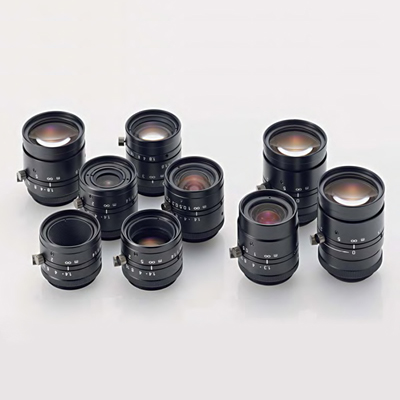

SV-V Series VST Machine Vision Lens
With its large variety of focal lengths, adjustable iris & focus, and support for a wide range of extension tubes and rear converter lenses, the SV-V series is a practical match for standard factory automation applications.
| Model | Focal length (mm) | Fno | Mod without extension ring | Angle of view(vxh) | Mount | Sensor size(max.) |
|---|---|---|---|---|---|---|
| SV-03514V | 3.5 | 1.4～(C) | 200～∞ | 77.8x105.9 | C-Mount | 1/2" |
| SV-04514V | 4.5 | 1.4～(C) | 200～∞ | 59.7x79.9 | C-Mount | 1/2" |
| SV-0614V | 6 | 1.4～(C) | 200～∞ | 43.4x56.6 | C-Mount | 1/2" |
| SV-0813V | 8 | 1.3～(C) | 200～∞ | 49.0x57.2 | C-Mount | 2/3" |
| SV-1214V | 12 | 1.4～(C) | 300～∞ | 21.9x29.1 | C-Mount | 1/2" |
| SV-1614V | 16 | 1.4～(C) | 400～∞ | 24.6x28.9 | C-Mount | 2/3" |
| SV-2514V | 25 | 1.4～(C) | 500～∞ | 16.1x19.0 | C-Mount | 1" |
| SV-3518V | 35 | 1.8～(C) | 300～∞ | 11.7x13.8 | C-Mount | 2/3" |
| SV-5018V | 50 | 1.8～(C) | 1000～∞ | 8.5x10.0 | C-Mount | 2/3" |
| SV-7527V | 75 | 2.7～(C) | 1000～∞ | 3.6x4.7 | C-Mount | 1/2" |
| SV-10035V | 100 | 3.5～(C) | 1000～∞ | 2.9x3.8 | C-Mount | 1/2" |
