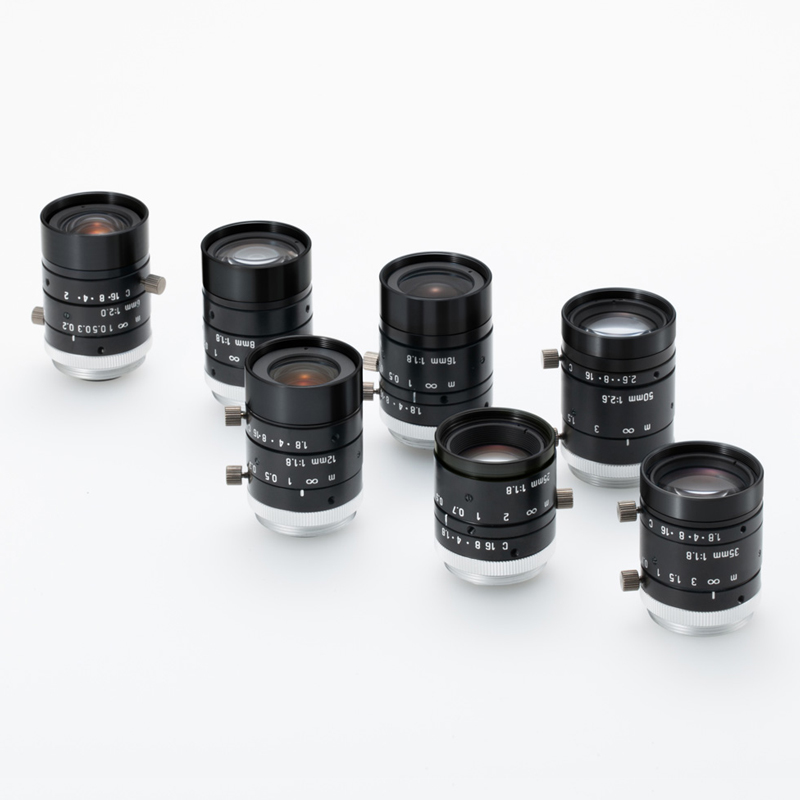

Compact fixed-focal imaging for 1/1.8- and 2/3-inch cameras
Seven C-mount models cover 6–50 mm focal lengths with high contrast, adjustable focus and model-specific minimum object distance for compact machine-vision systems.
- Models
- 7
- VS-0620VM through VS-5026VM
- Focal lengths
- 6–50 mm
- Family range
- Sensor coverage
- 1/1.8–2/3 inch
- Model-dependent
- Mount
- C mount
- All rows
- Minimum object distance
- 100–400 mm
- Model-dependent
- Compact fixed-focal design
- High resolution and contrast
- Adjustable focus
- Options for 1/1.8- and 2/3-inch sensors
- Wide 6–50 mm focal-length range
- Compact factory-automation cameras
- Electronics and component inspection
- Positioning and recognition
- General high-contrast area-camera imaging
Optical performance and model-specific limits
Use the numerical model limits together with MTF, field-curvature, distortion and transmission plots to evaluate image quality across the required field.
The model table contains this family’s available technical record
Focal length, aperture, working distance, distortion, illumination, filter and mount data are listed by model. A separate optical-performance or mechanical plot is not available for this family.
Match the compact lens to sensor, field and closest focus
Start with the sensor and required field of view, then compare optical and mechanical constraints within one complete model row.
VS-0620VM- VS
- VST lens prefix
- 06
- 6 mm focal length
- 20
- F/2.0 class
- VM
- Compact fixed-focal family
- 1
Define sensor and required field
Record sensor format, pixel size, inspection width and smallest feature.
- 2
Choose the optical geometry
Compare focal length or magnification with the listed working distance.
- 3
Check image quality limits
Review distortion, relative illumination, aperture and the retained performance plots.
- 4
Release one complete row
Keep mount, filter, body and optical values associated with the chosen model.
| Model | Focal length | F/# | Minimum object distance | Angle of view V×H | Mount | Sensor |
|---|---|---|---|---|---|---|
| VS-0620VM | 6 mm | 2.0 | 100 mm | 48.4°×61.9° | C mount | 1/1.8 inch |
| VS-0818VM | 8 mm | 1.8 | 100 mm | 37.2°×48.2° | C mount | 1/1.8 inch |
| VS-1218VM | 12 mm | 1.8 | 100 mm | 25°×32.6° | C mount | 1/1.8 inch |
| VS-1618VM | 16 mm | 1.8 | 100 mm | 18.8°×24.6° | C mount | 1/1.8 inch |
| VS-2518VM | 25 mm | 1.8 | 250 mm | 12.1°×15.9° | C mount | 1/1.8 inch |
| VS-3518VM | 35 mm | 1.8 | 250 mm | 11.7°×13.8° | C mount | 2/3 inch |
| VS-5026VM | 50 mm | 2.6 | 400 mm | 8.1°×9.6° | C mount | 2/3 inch |
Confirm compact C-mount clearance and focus access
Use one row’s focal length, sensor size, angle of view and minimum object distance. Obtain the exact outline for the selected model before freezing a constrained machine envelope.
Sensor
Do not exceed the selected row’s 1/1.8- or 2/3-inch format.
Field
Confirm the listed angle on the actual camera.
Focus
Reserve at least the row-specific minimum object distance.
Envelope
Confirm barrel clearance, iris/focus access and C-mount engagement.
