Lens

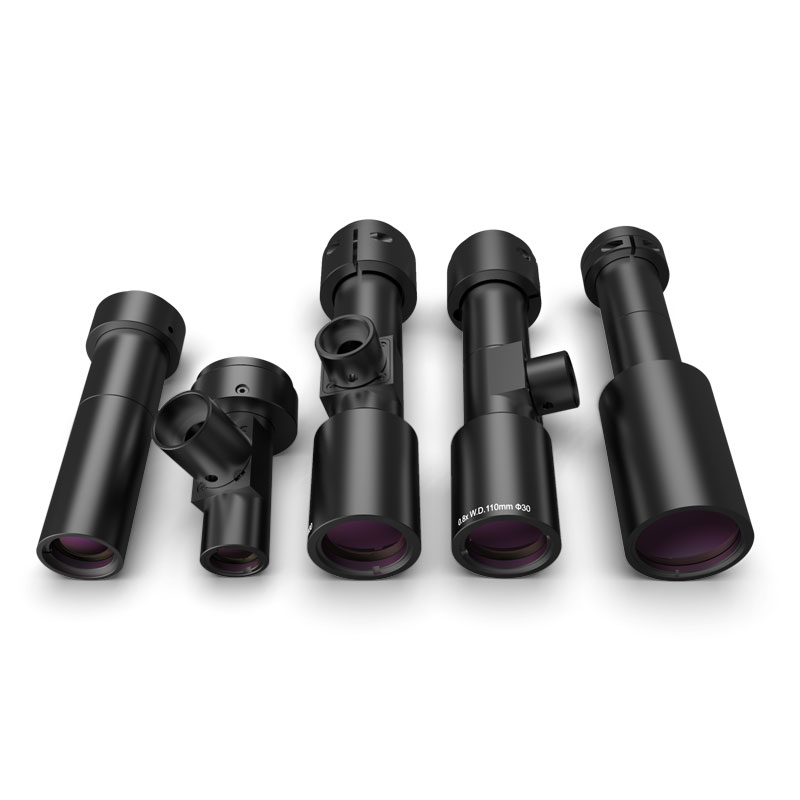

5MP Telecentric Lens
Standard 5 million telecentric lenses
1.Low distortion ＜ 0.02%. 2.16mm outer diameter, compact structure, adapted to narrow space. 3.Supporting magnification: 2.0X, 1.5X, 1.0X, 0.8X, 0.5X.
Applications
- •AOI 3D inspection.
- •2.Intergrated circuit pakage.
- •3.Semiconductor, printing circuit inspection.
- •4.Medicine, medical instrument inspection.
- •5.Auto parts inspection.

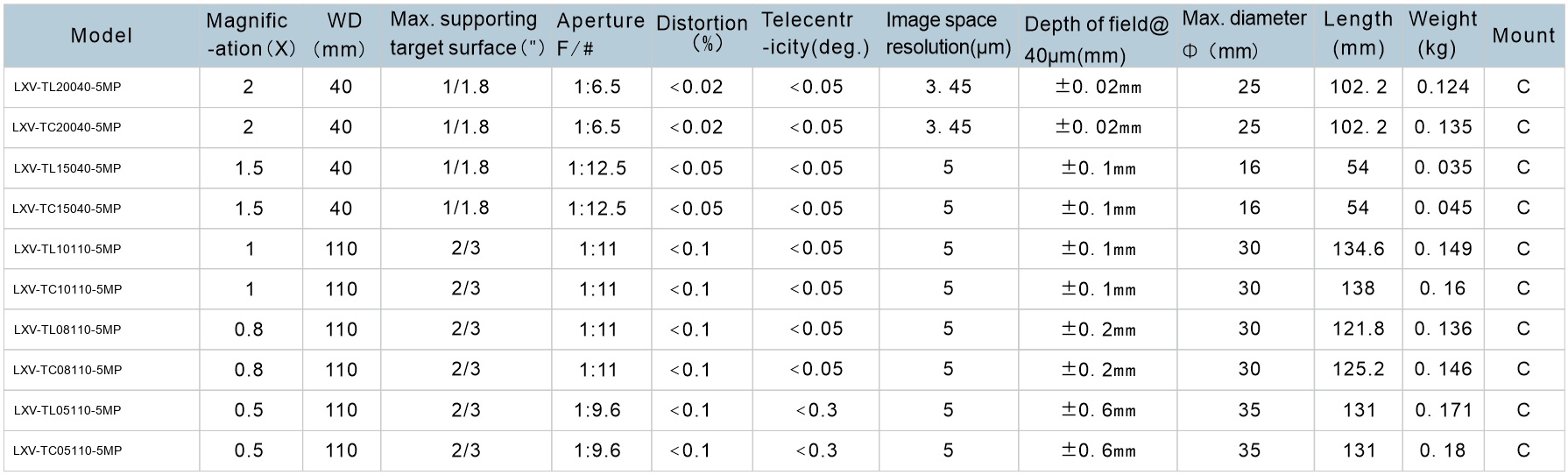

Contact us directly for detailed parameter configurations for this series.
IMAGING COMPARISON
Application Effect Analysis
Real-world inspection imaging comparison — demonstrating the contrast and uniformity advantages of Standard_5_million_telecentric.
OPTICAL DESIGN & NAMING

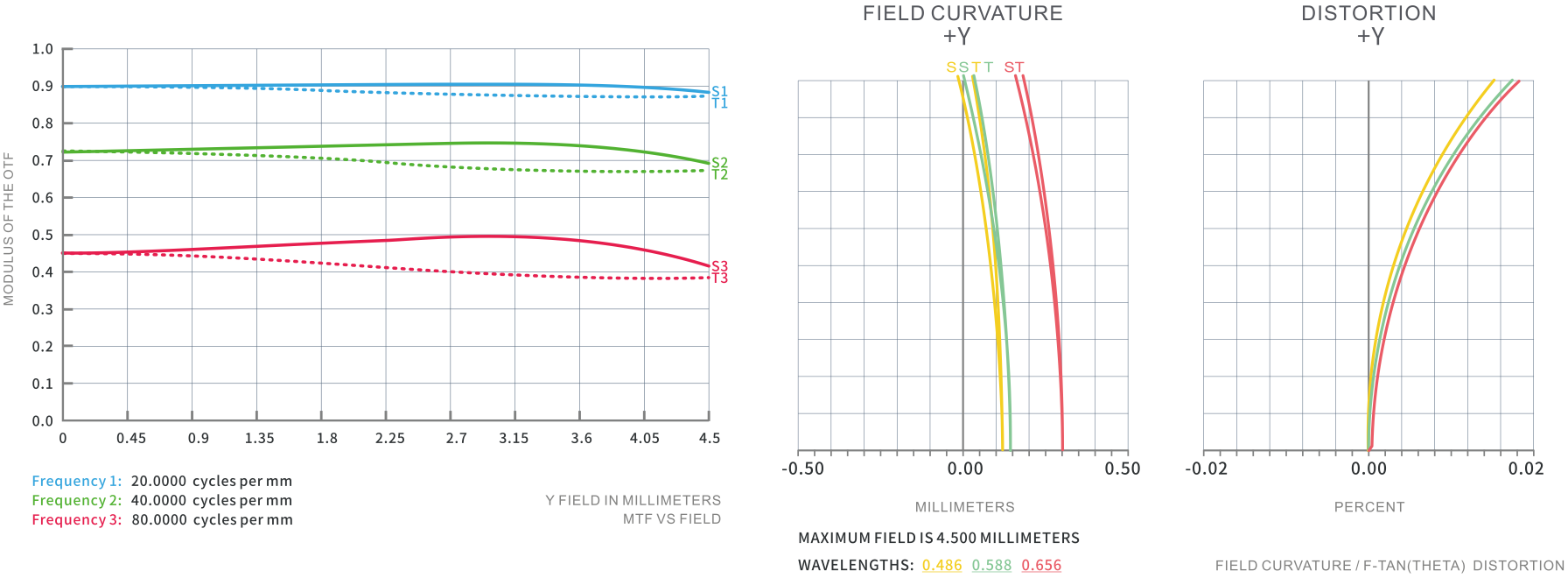

Optical Diagram & Model Naming Convention

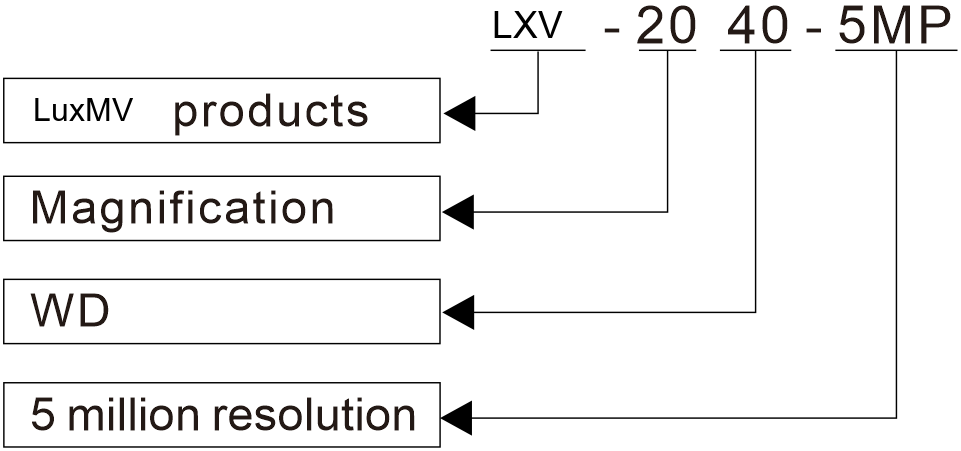

Model Naming Convention
Vector DiagramDIRECT ENQUIRY
Get a Customized Quotation
Need specific dimensions, custom wavelength LED combinations, or special cabling? Our optical engineering and sales offices are ready to assist.
Sales Email: info@luxmv.com
Response SLA: Under 4 Hours (Business Days)
Free Optical Simulation
Send us your target workpiece samples. We will test them in our R&D lighting darkrooms and supply a selection report completely free.
Request Technical Quotation
Our optical engineering sales team responds to all corporate requests within 4 hours.
