Lens
SV-1628H10M

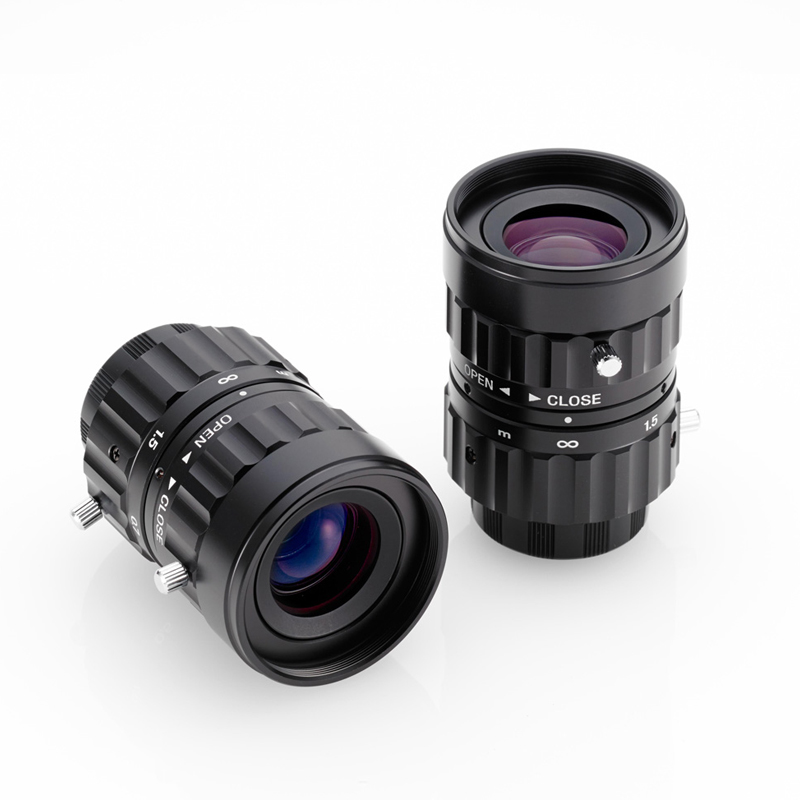

SV-1628H10M Series VST Machine Vision Lens
This particular lens was specifically made to deliver the most optimal resolution for any camera supporting up to a 2/3" sensor. It's 200Lp/mm resolution is maintained from the center of the lens, to its very edge. With reduced shading and distortion, in terms of resolution, this lens simply cannot be beaten.
| Model | Focal length (mm) | F/# | Mod extension ring | Angle of view(vxh) | Camera mount | SENSOR SIZE（max.） |
|---|---|---|---|---|---|---|
| VS-1628H10M | 16 | 2.8 - 22 | 350 | 23.3x30.7 | C-Mount | 2/3" |
OPTICAL DESIGN & NAMING
Optical Diagram & Model Naming Convention
Model Naming Convention
Vector DiagramDIRECT ENQUIRY
